4.6.8 LATCH ASSY AD
REMOVAL
1. Remove COVER ASSY RH. (p.301)
2. Remove 2ND BTR ASSY. (p.348)
3. Remove FRAME ASSY-PH. (p.327)
4. Remove BCR CLN XERO ASSY. (p.373)
5. Remove SENSOR TR-0. (p.361)
6. Remove GUIDE CRU ASSY AD. (p.367)
7. Unhook SPRING-TORSION AD from the hook on GUIDE CRU ASSY AD.
8. Remove LATCH ASSY AD together with SPRING-TORSION AD from GUIDE
CRU ASSY AD.
9. Remove SPRING-TORSION AD from LATCH ASSY AD.
REINSTALLATION
1. Attach SPRING-TORSION AD to LATCH ASSY AD.
2. Attach LATCH ASSY AD together with SPRING-TORSION AD to GUIDE CRU
ASSY AD.
3. Hook SPRING-TORSION AD onto the hook on GUIDE CRU ASSY AD.
4. Attach GUIDE CRU ASSY AD. (p.367)
5. Attach SENSOR TR-0. (p.361)
6. Attach BCR CLN XERO ASSY. (p.373)
7. Attach FRAME ASSY-PH. (p.327)
8. Attach 2ND BTR ASSY. (p.348)
9. Attach COVER ASSY RH. (p.301)

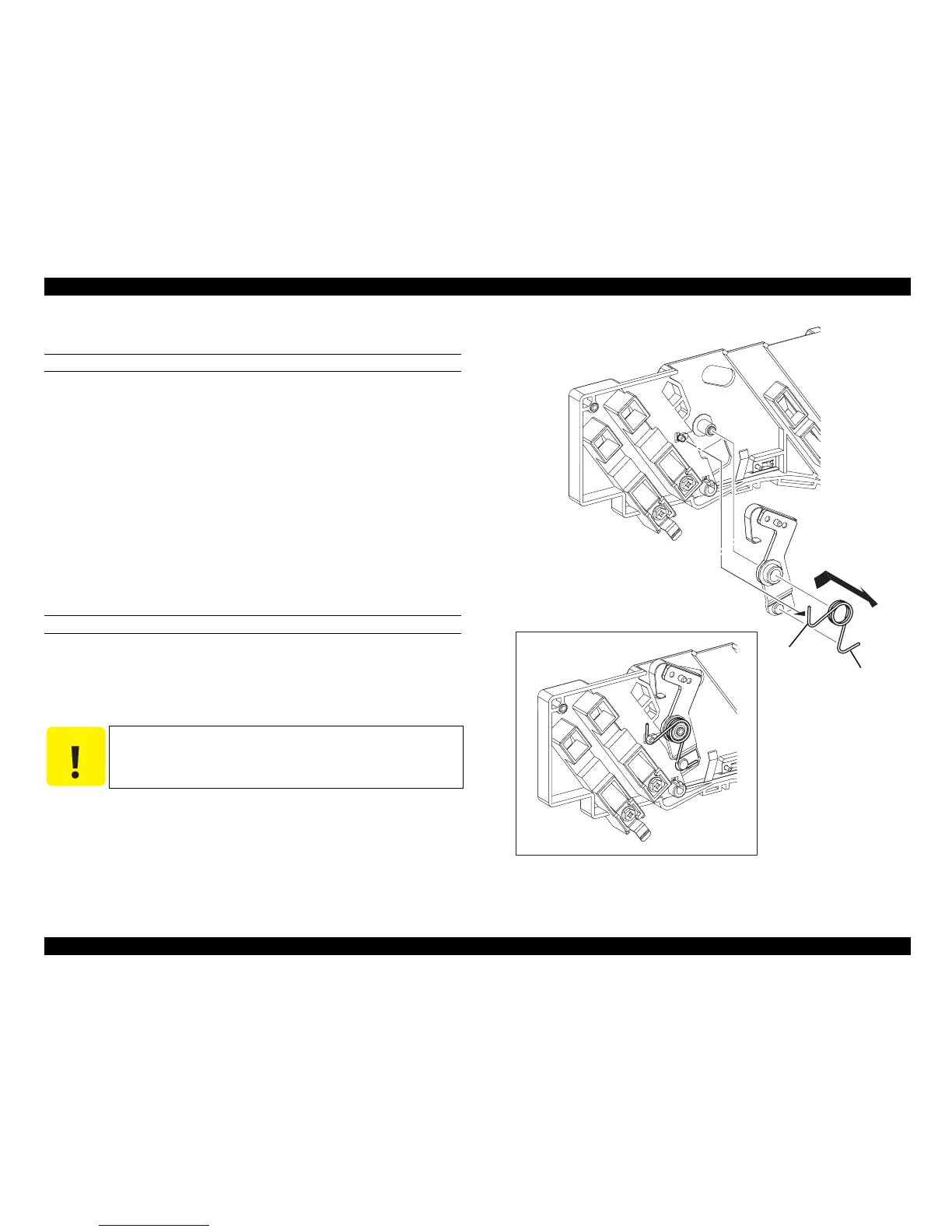

Figure 4-83. Removal of LATCH ASSY AD
C A U T I O N
SPRING-TORSION AD must be firmly attached onto the hooks on
LATCH ASSY AD and GUIDE CRU ASSY AD.
(Do not attach SPRING-TORSION AD in the reverse direction)
