EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY DUPLEX 413
4.12.2 COVER-R DUP
REMOVAL
1. Remove DUPLEX ASSY. (p.412)
2. Remove the 3 screws (silver, with flange, tapping, 10mm) fastening COVER-R
DUP to DUPLEX ASSY.
3. Remove COVER-R DUP from DUPLEX ASSY.
REINSTALLATION
1. Attach COVER-R DUP to DUPLEX ASSY.
2. Attach COVER-R DUP to DUPLEX ASSY with the 3 screws (silver, with flange,
tapping, 10mm).
3. Attach DUPLEX ASSY. (p.412)

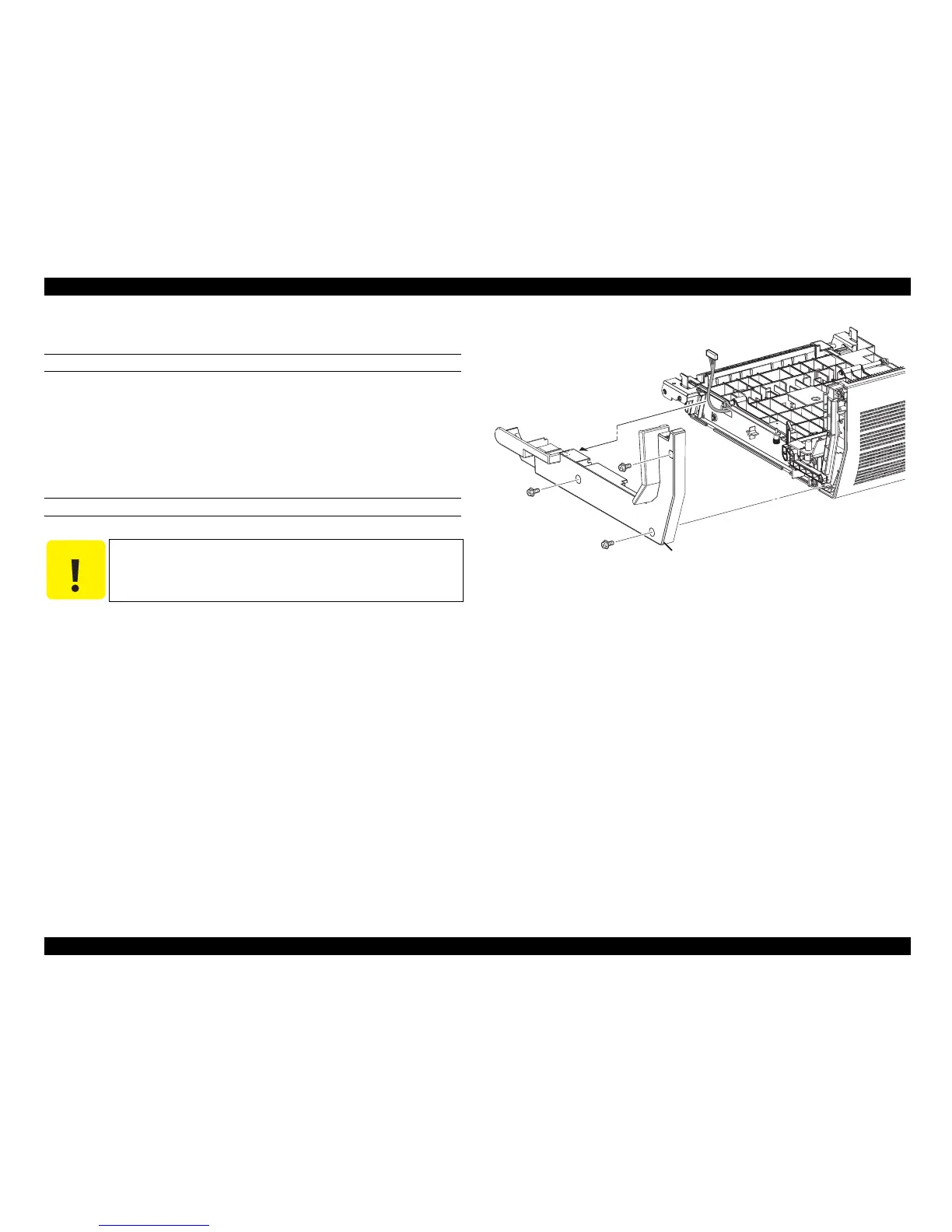

Figure 4-116. Removal of COVER-R DUP
C A U T I O N
When performing the following work, take care to prevent the
harness from being sandwiched between DUPLEX ASSY and
COVER-R DUP.
Leg_Sec03_116EA
3)
2)
2)
2)
