Epson AcuLaser C1100 User Manual

EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY 500 PAPER CASSETTE & 500 PAPER FEEDER 462
4.13.16 HARNESS-ASSY FEED 1
REMOVAL
1. Remove 500 PAPER FEEDER ASSY. (p.452)
2. Remove COVER LEFT 500. (p.453)
3. Unclamp the clamp fastening the harness of HARNESS-ASSY FEED 1.
4. Disconnect connector (P/J435) from PWBA-TRAY 500.
5. Unhook the 2 hooks fastening HARNESS-ASSY FEED 1 to 500 PAPER
FEEDER ASSY, and remove HARNESS-ASSY FEED 1.
REINSTALLATION
1. Pass the connector (P/J43) on HARNESS-ASSY FEED through the hole on 500
PAPER FEEDER ASSY.
2. Attach HARNESS-ASSY FEED 1 to 500 PAPER FEEDER ASSY, and fasten
with the hook.
3. Connect connector (P/J435) to PWBA-TRAY 500.
4. Fasten the harness of HARNESS-ASSY FEED 1 with the clamp.
5. Attach COVER LEFT 500. (p.453)
6. Attach 500 PAPER FEEDER ASSY. (p.452)

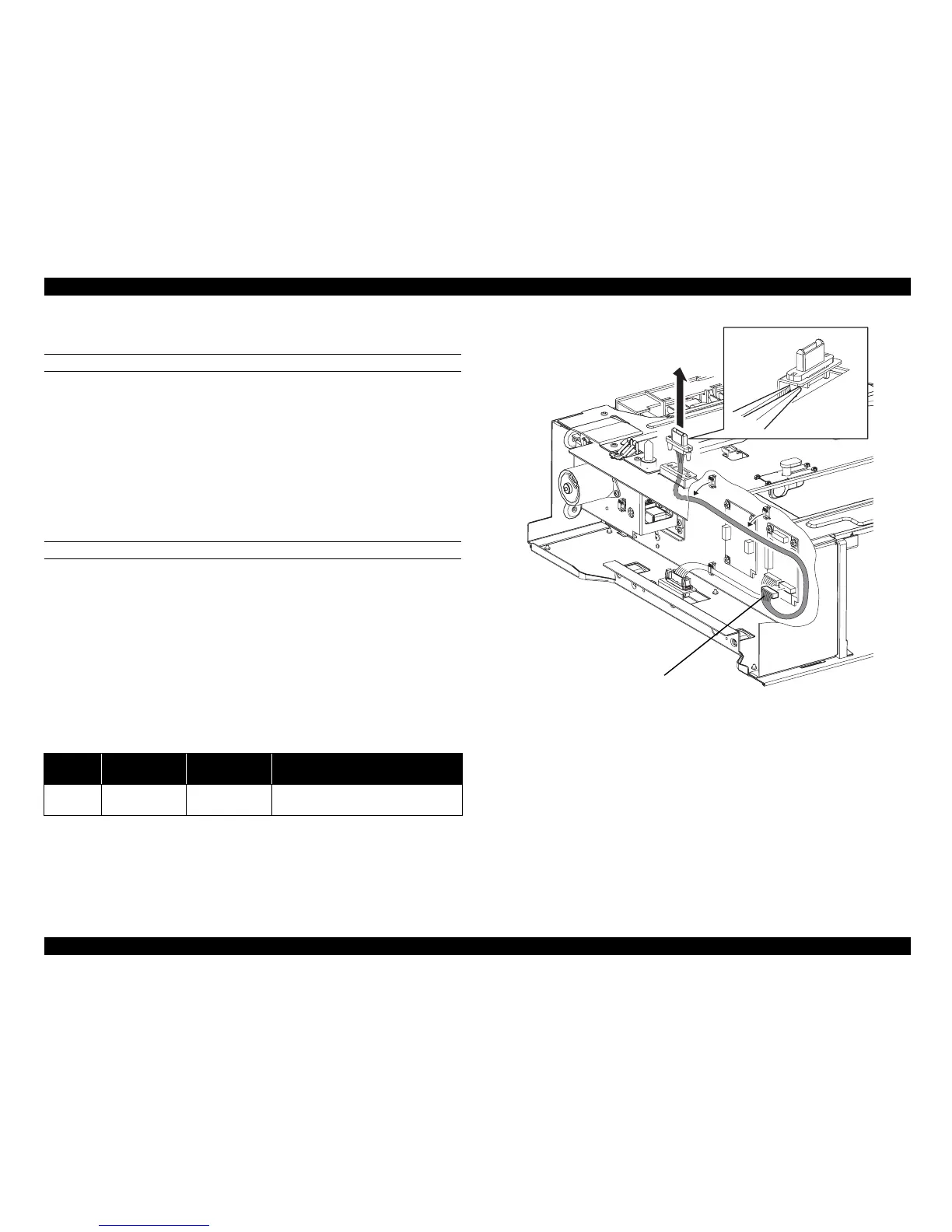

Figure 4-162. Removal of HARNESS-ASSY FEED 1
Table 4-16. Symptoms when the connector is loose
Connector
No.
Panel Indication Symptom
Error Caused by Connector
Disconnection
P/J435 Service Req E547
Printing is not
possible.
Paper Feeder cannot be detected.
Leg_Sec03_026FA
3)
3)
4)
5)-2
5)-1

Epson AcuLaser C1100 Specifications

General

Internal memory	32 MB
Maximum internal memory	256 MB
Sound pressure level (printing)	55 dB
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
Color	Yes
Print technology	Laser
Time to first page (black, normal)	9 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
I/O ports	IEEE 1284 USB 2.0
Power requirements	220-240V
Standard media sizes	A4, A5, B5, LT, GLT, HLT, EXE, C5, C6, COM10, DL, MON, ISO-B5; 90 x 139.7mm - 216 x 297mm
Minimum system requirements	Pentium II 233MHz [Pentium II 450MHz], 64MB [128MB] IEEE1284 ECP mode, USB (Windows 98/ME/2000/XP) PowerPC G3 233MHz [G4 500MHz], 64MB [128MB]
Compatible operating systems	Mac OS X 10.1.2 Mac OS Classic 9.0 Windows 2003 Server Windows 2000 Windows XP Windows NT 4.0 Windows Me Windows 98 Windows 95
Sustainability certificates	ENERGY STAR
Total input capacity	180 sheets
Total output capacity	250 sheets
Maximum input capacity	680 sheets
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Maximum duty cycle	45000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	445 x 445 x 439 mm
