Epson AcuLaser C1100 User Manual

EPSON AcuLaser C1100 Revision B
OPERATING PRINCIPLES Drive Transmission Path 91
2.3.5 MOTOR ASSY FSR
Rotation of MOTOR ASSY FSR is transmitted as follows:

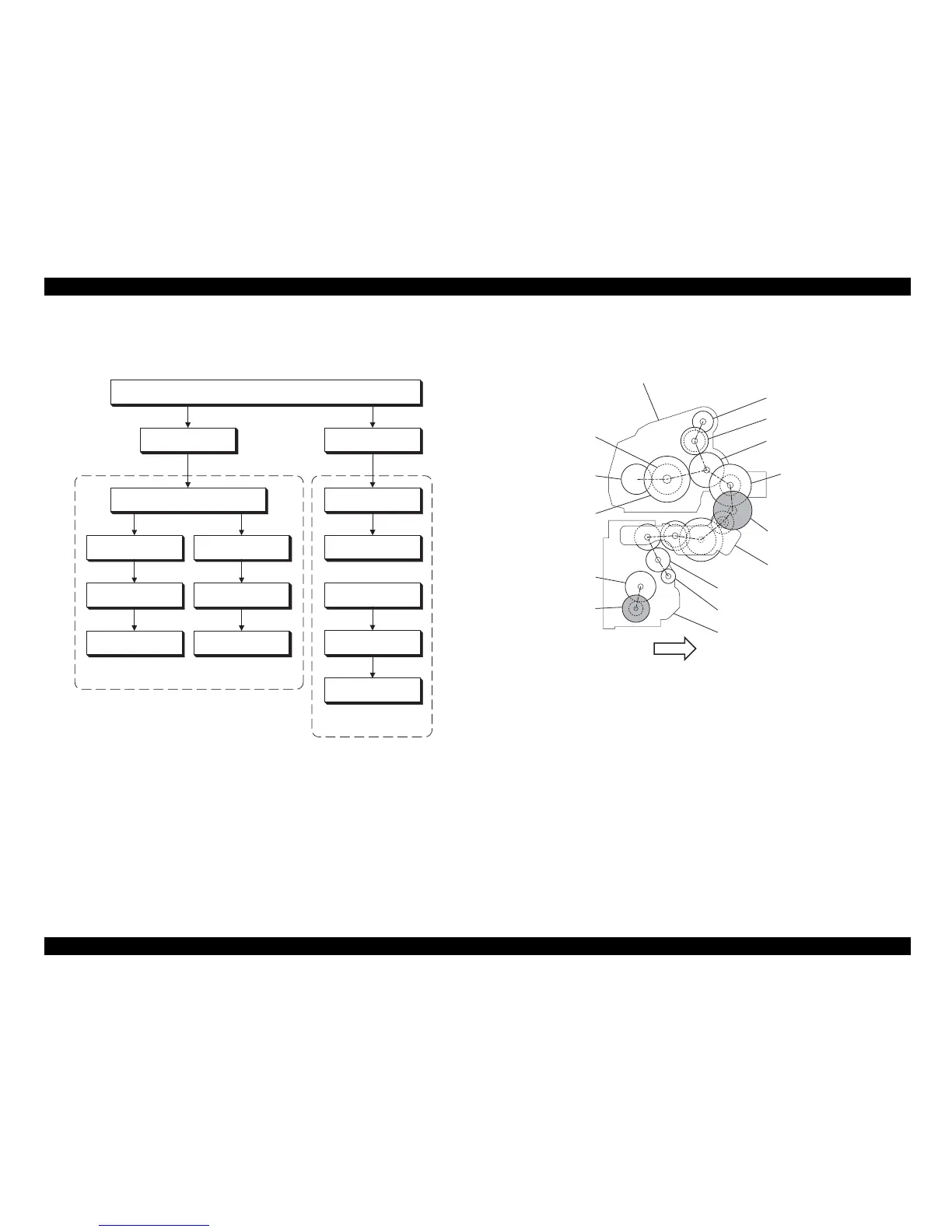

Figure 2-27. Drive Transmission Flow
Figure 2-28. Diagram of Drive Transmission Path
MOTOR ASSY FSR (Fuser Motor)
GEAR-IDLER EXIT
GEAR EXIT
GEAR HR
ROLL ASSY FUSER
FUSER ASSY
TRANSFER ASSY
EXIT ROLLER BELT ASSY
GEAR 2ND
GEAR-IDLER GEAR-27
2ND BTR ASSY
MOT ASSY MICRO
DRIVE ASSY BTR
GEAR-28
CAM ASSY-2ND
Leg_Sec06_039EB
GEAR EXIT
GEAR-IDLER EXIT
GEAR-IDLER
GEAR-27
GEAR 2ND
FUSER ASSY
DRIVE ASSY BTR
TRANSFER ASSY
2ND BTR ASSY
MOTOR ASSY FSR
BELT ASSY
ROLL ASSY FUSER
GEAR HR
GEAR-28
MOT ASSY MICRO
FRONT
Leg_Sec06_043EC
