OPERATING PRINCIPLES Drive Transmission Path 90
2.3.4 MOTOR ASSY DUP
Rotation of MOTOR ASSY DUP is transmitted as follows:

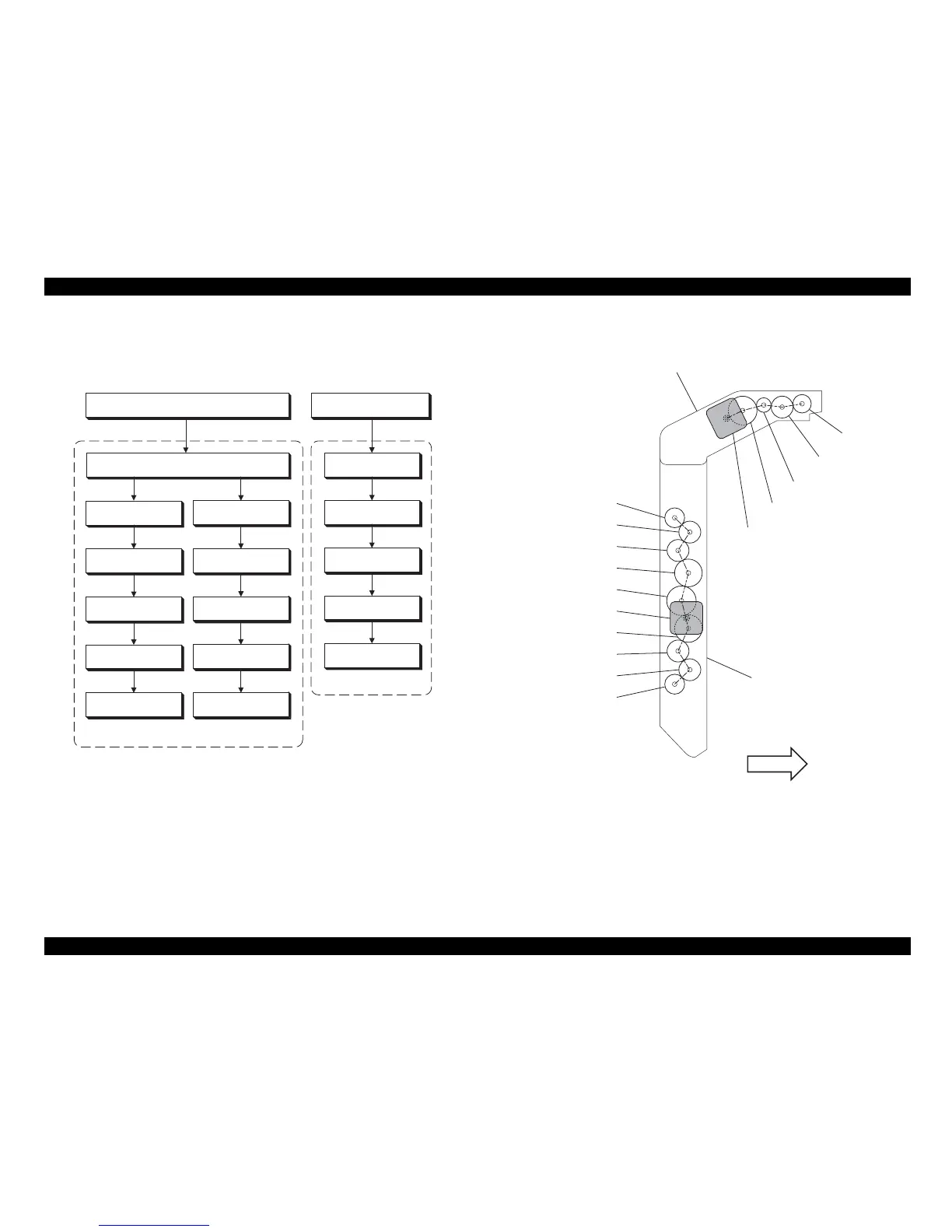

Figure 2-25. Drive Transmission Flow
Figure 2-26. Diagram of Drive Transmission Path
MOTOR ASSY DUP MOTOR ASSY DUP INV
GEAR 40/42
GEAR 36
GEAR 48H
GEAR 40/42
TRANSPORT ASSY DUP
INVERTER ASSY DUP
GEAR 36
GEAR 36
GEAR 30 OW
GEAR 36
ROLLER ASSY DUP OUT
GEAR 30
ROLLER ASSY DUP
GEAR 48H
GEAR 20/21H
GEAR 36
GEAR 30
ROLLER ASSY INVERTER
Leg_Sec06_038FB
GEAR 30
GEAR 30
GEAR 36
GEAR 20/21H
GEAR 48H
MOTOR ASSY DUP INV
INVERTER ASSY DUP
TRANSPORT ASSY DUP
GEAR 36
GEAR 36
GEAR 40/42
GEAR 48H
MOTOR ASSY DUP
GEAR 40/42
GEAR 36
GEAR 36
GEAR 30 OW
FRONT
Leg_Sec06_041FC

Epson AcuLaser C1100 Specifications

General

Internal memory	32 MB
Maximum internal memory	256 MB
Sound pressure level (printing)	55 dB
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
Color	Yes
Print technology	Laser
Time to first page (black, normal)	9 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
I/O ports	IEEE 1284 USB 2.0
Power requirements	220-240V
Standard media sizes	A4, A5, B5, LT, GLT, HLT, EXE, C5, C6, COM10, DL, MON, ISO-B5; 90 x 139.7mm - 216 x 297mm
Minimum system requirements	Pentium II 233MHz [Pentium II 450MHz], 64MB [128MB] IEEE1284 ECP mode, USB (Windows 98/ME/2000/XP) PowerPC G3 233MHz [G4 500MHz], 64MB [128MB]
Compatible operating systems	Mac OS X 10.1.2 Mac OS Classic 9.0 Windows 2003 Server Windows 2000 Windows XP Windows NT 4.0 Windows Me Windows 98 Windows 95
Sustainability certificates	ENERGY STAR
Total input capacity	180 sheets
Total output capacity	250 sheets
Maximum input capacity	680 sheets
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Maximum duty cycle	45000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	445 x 445 x 439 mm
