OPERATING PRINCIPLES Paper Feed 93
2.4 Paper Feed
This section explains and illustrates the main functional components that make up the
paper feed section. The components are divided into four blocks as follows based on
the basic configuration.
MSI (Multi Sheet Inserter)
Registration & FUSER
500 Paper Feeder
Duplex (Option)

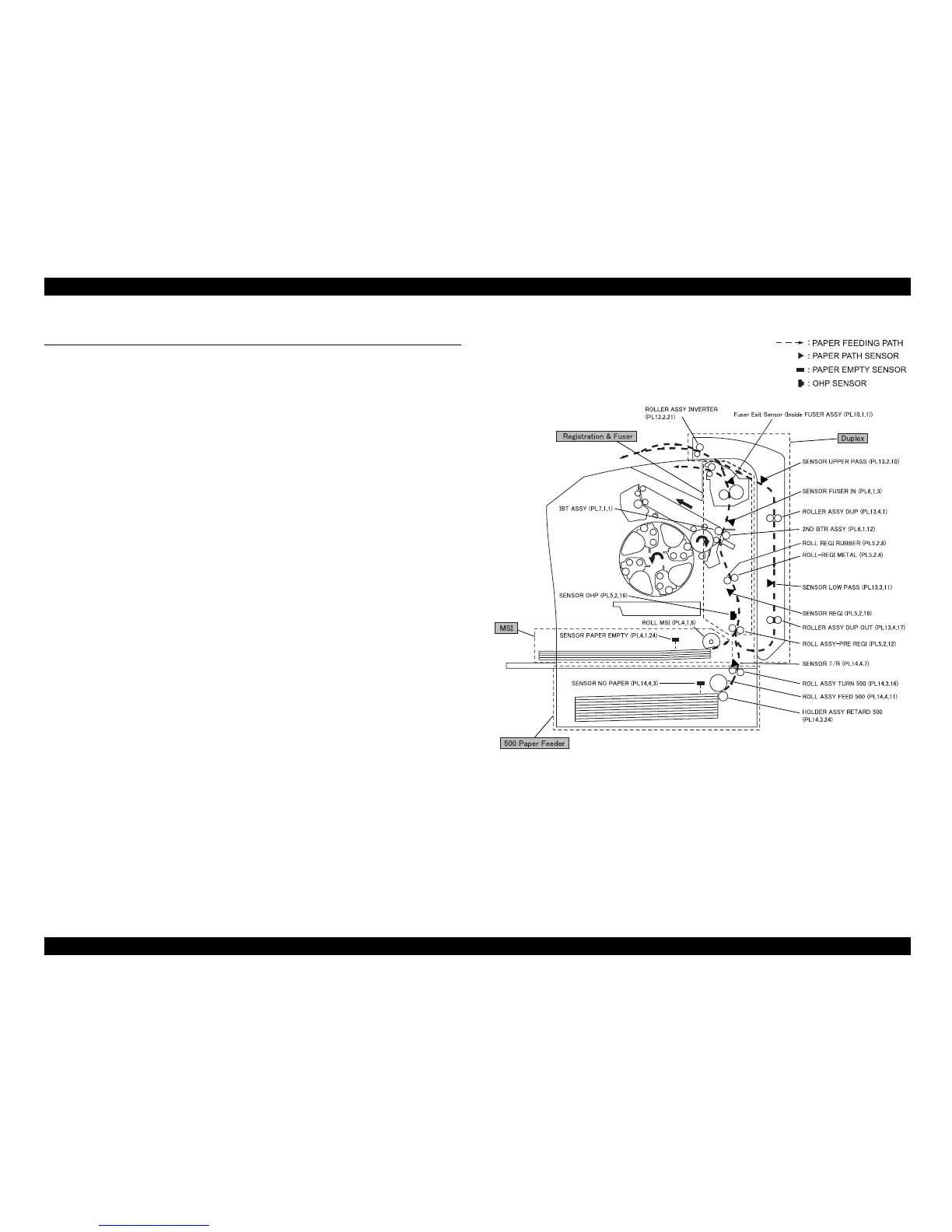

Figure 2-31. Paper Feed Path Layout
Leg_Sec06_004EC
