Epson AcuLaser C1100 - Pad Damper L

EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY DUPLEX 438
4.12.22 PAD DAMPER L
REMOVAL
1. Remove DUPLEX ASSY. (p.412)
2. Remove COVER-L DUP. (p.414)
3. Remove HINGE ASSY L. (p.434)
4. Remove the screw (silver, with flange, 6 mm) fastening BRACKET PAD L to
HINGE-L.
5. Remove BRACKET PAD L from HINGE-L together with PAD DAMPER L.
6. Peel off and remove PAD DAMPER L from HINGE-L and BRACKET PAD L.
REINSTALLATION
1. Cleanly peel off any old double-sided adhesive tape from the attachment surfaces
of HINGE-L and BRACKET PAD L, and wipe off with drum cleaner or similar
solution.
2. Peel off the protective paper from the dual-sided adhesive tape of PAD DAMPER
L, and affix PAD DAMPER L to the affixing surfaces of HINGE-L and
BRACKET PAD L.
3. Match the hole on BRACKET PAD L with the boss on HINGE-L, and attach
BRACKET PAD L together with PAD DAMPER L.
4. Fasten BRACKET PAD L to HINGE-L with the screw (silver, with flange, 6 mm).
5. Attach HINGE ASSY L. (p.434)
6. Attach COVER-L DUP. (p.414)
7. Attach DUPLEX ASSY. (p.412)

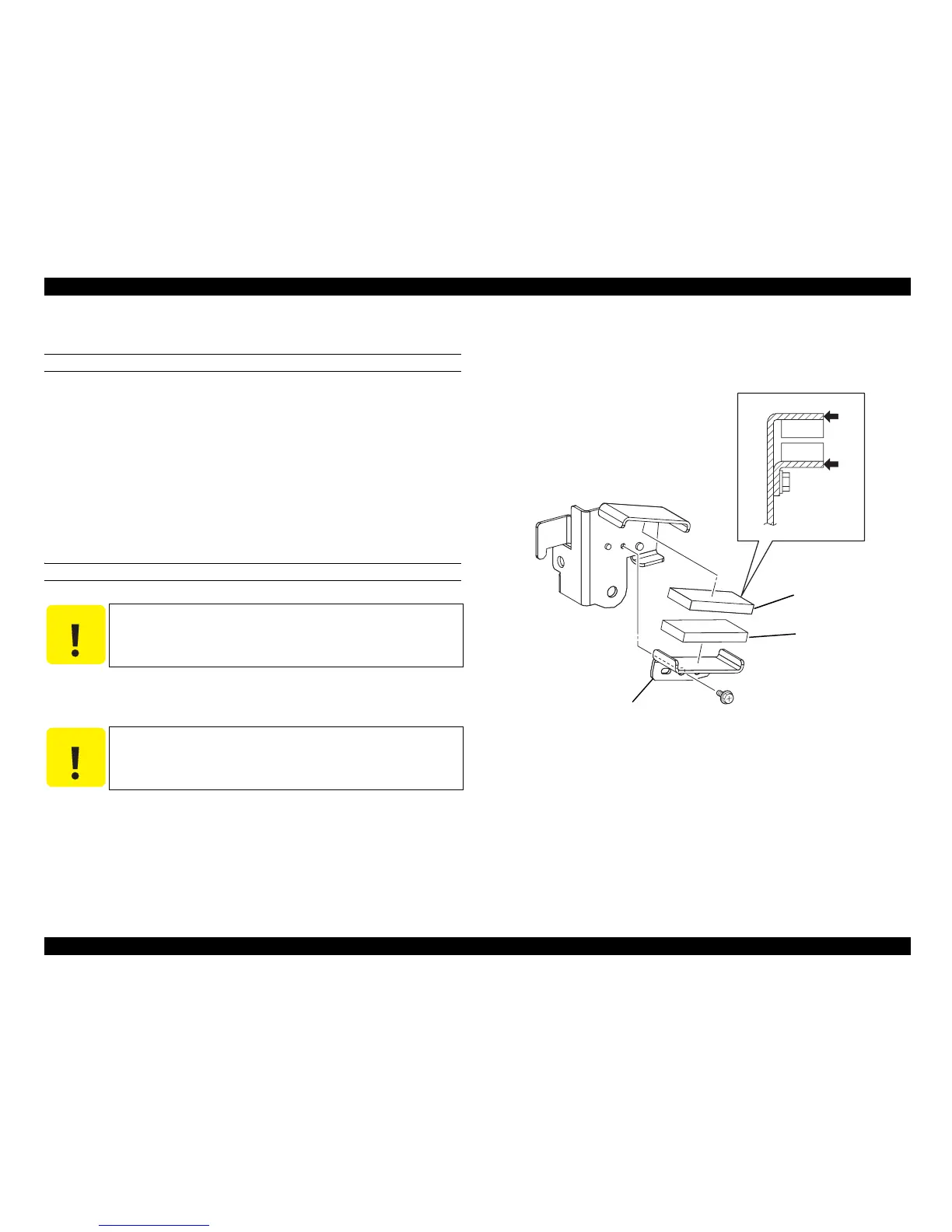

Figure 4-138. Removal of PAD DAMPER L
C A U T I O N
The shapes of the left and right PAD DAMPERs are different. Take
care not to confuse these dampers.
PAD DAMPER L is broad, while PAD DAMPER R is narrow.
C A U T I O N
When performing the following work, match PAD DAMPER L
with the area shown in the Figure right, located on HINGE-L and
BRACKET PAD L, and then affix PAD DAMPER L.
Leg_Sec03_513EA
NOTE
6)
6)
4)
5)
