EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY COVER 303
4.2.19 SWITCH-INLK FUSER
REMOVAL
1. Remove COVER ASSY LH. (p.295)
2. Remove SWITCH ASSY FUSER. (p.298)
3. Remove the screw (silver, 8 mm) fastening SWITCH-INLK FUSER to
BRACKET INLK FUSER.
4. Remove SWITCH-INLK FUSER from BRACKET INLK FUSER.
REINSTALLATION
1. Match the hole on SWITCH-INLK FUSER with the boss on BRACKET INLK
FUSER.
2. Fasten SWITCH-INLK FUSER to BRACKET INLK FUSER with the screw
(silver, 8 mm).
3. Attach SWITCH ASSY FUSER. (p.298)
4. Attach COVER ASSY LH. (p.295)

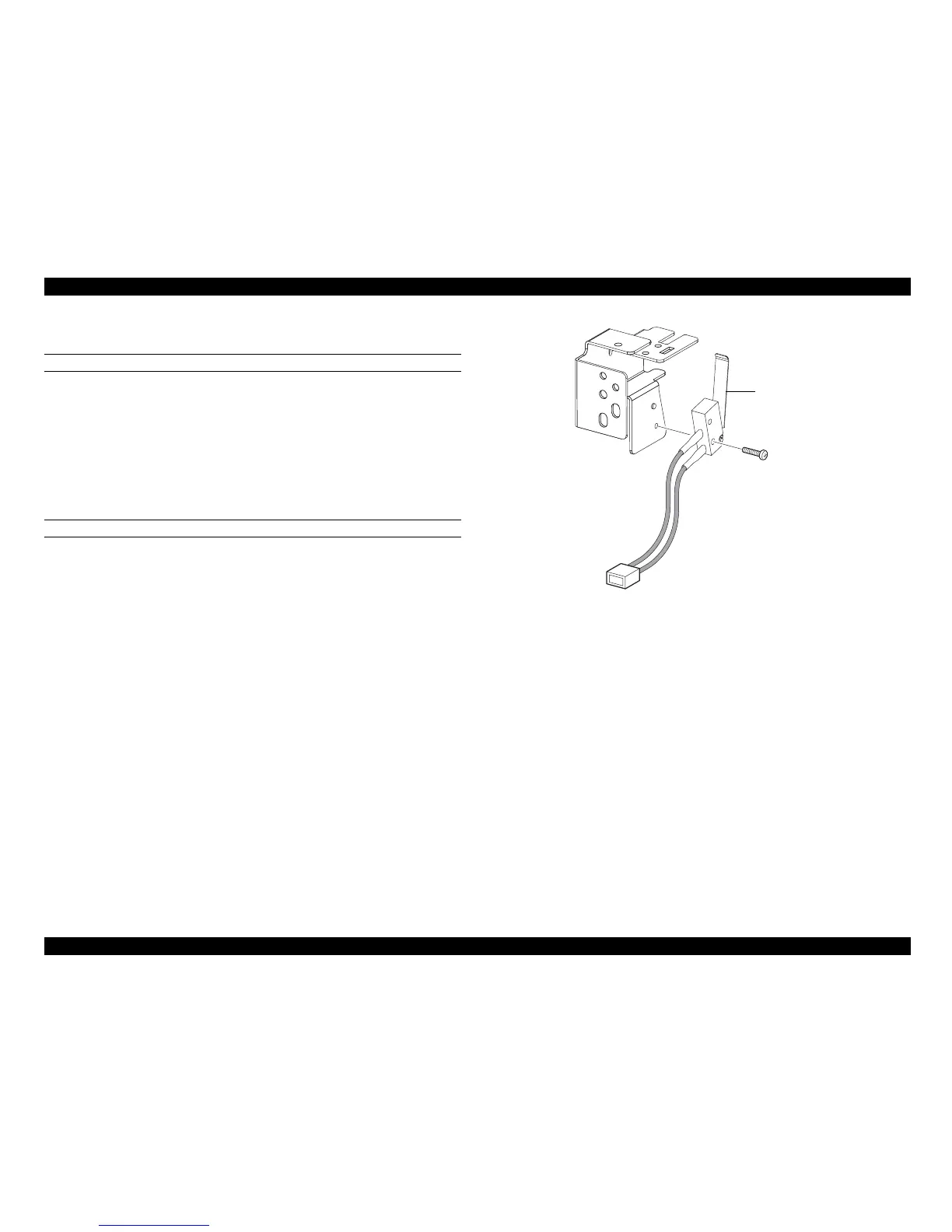

Figure 4-22. Removal of SWITCH-INLK FUSER
Leg_Sec03_506EB
3)
4)
