Epson AcuLaser M2000D User Manual

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 94
Confidential

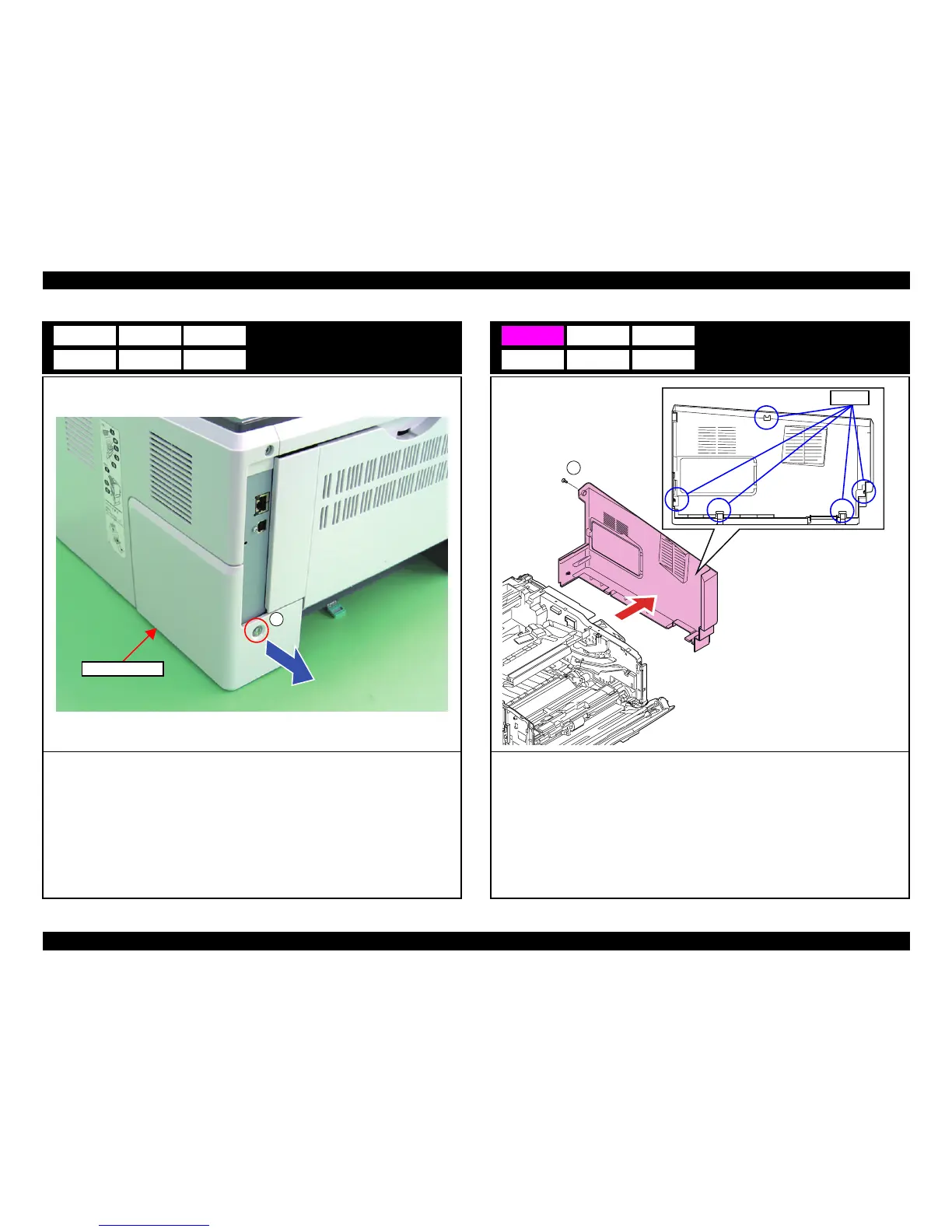

Controller Cover
1. Remove the screw.
A) Silver / M3x6 / S-Tite: One piece
2. Remove the Controller Cover in the direction of the arrow.
A1 B1
D1 E1
C1
F1
A
Controller Cover
Right Cover
1. Open the Front Cover.
2. Slightly pull out the Paper Cassette.
3. Remove the screw.
A) Silver / M3x10 / P-Tite: One piece
4. Disengage the five hooks of the Right Cover in the order from the rearmost hook to the
frontmost hook, and remove the Right Cover.
A2 B2
D2 E2
C2
F2
Hooks
A
