EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 104
Confidential

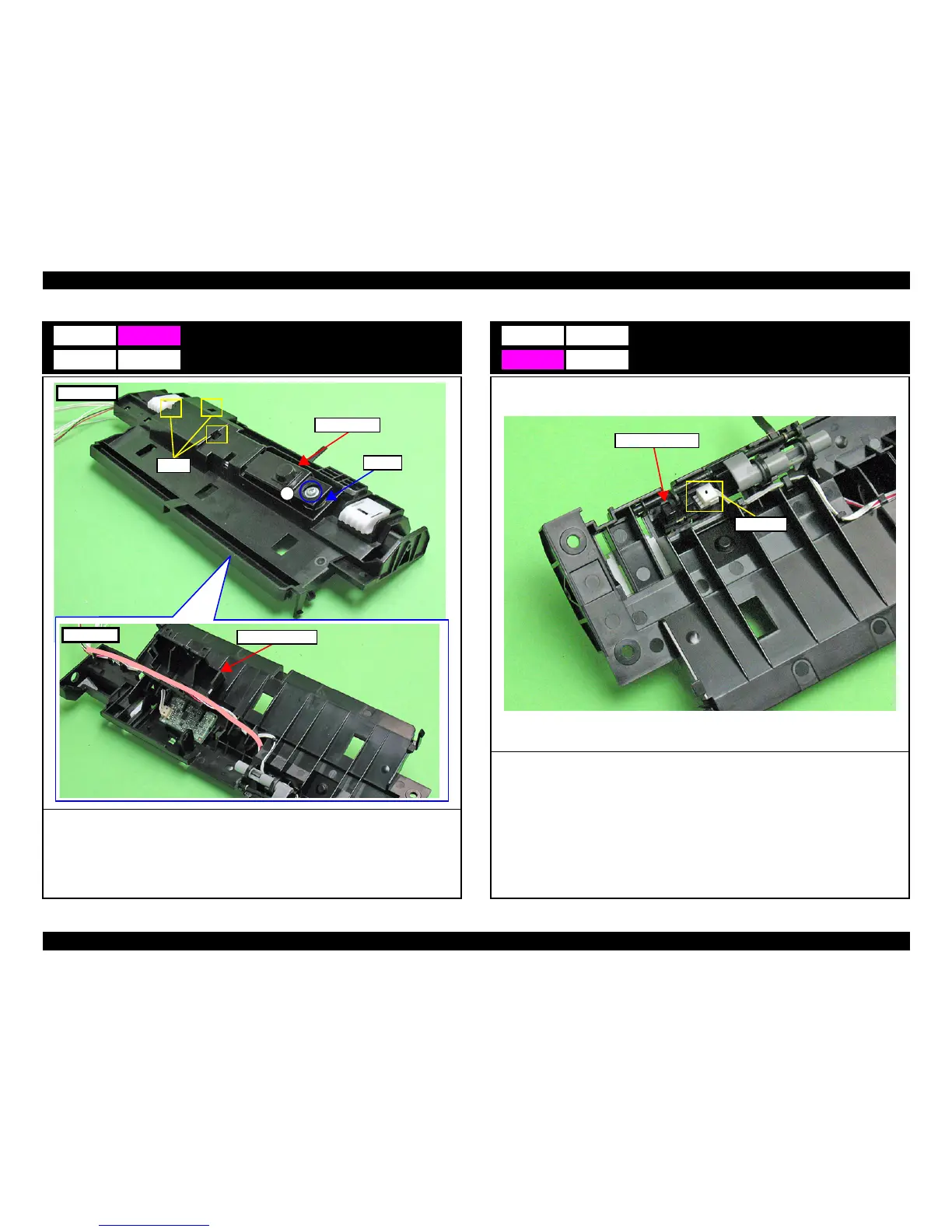

Toner Sensor
1. Remove the screw, and remove the spring.
A) Silver / M3x10 / Washer P-Tite: One piece
2. Disengage the three hooks and remove the Connector Cover.
3. Release the cable from the cable retainers on the Connector Cover.
4. While pulling out the cable, remove the Toner Sensor.
B6
Toner Sensor
Hooks
Back side
Connector Cover
A
Spring
Front side
MP Paper Sensor
1. Disengage the hook and remove the MP Paper Sensor from the Paper Feed Assy.
2. Disconnect the connector from the MP Paper Sensor.
C6
MP Paper Sensor
Connector
