EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 103
Confidential

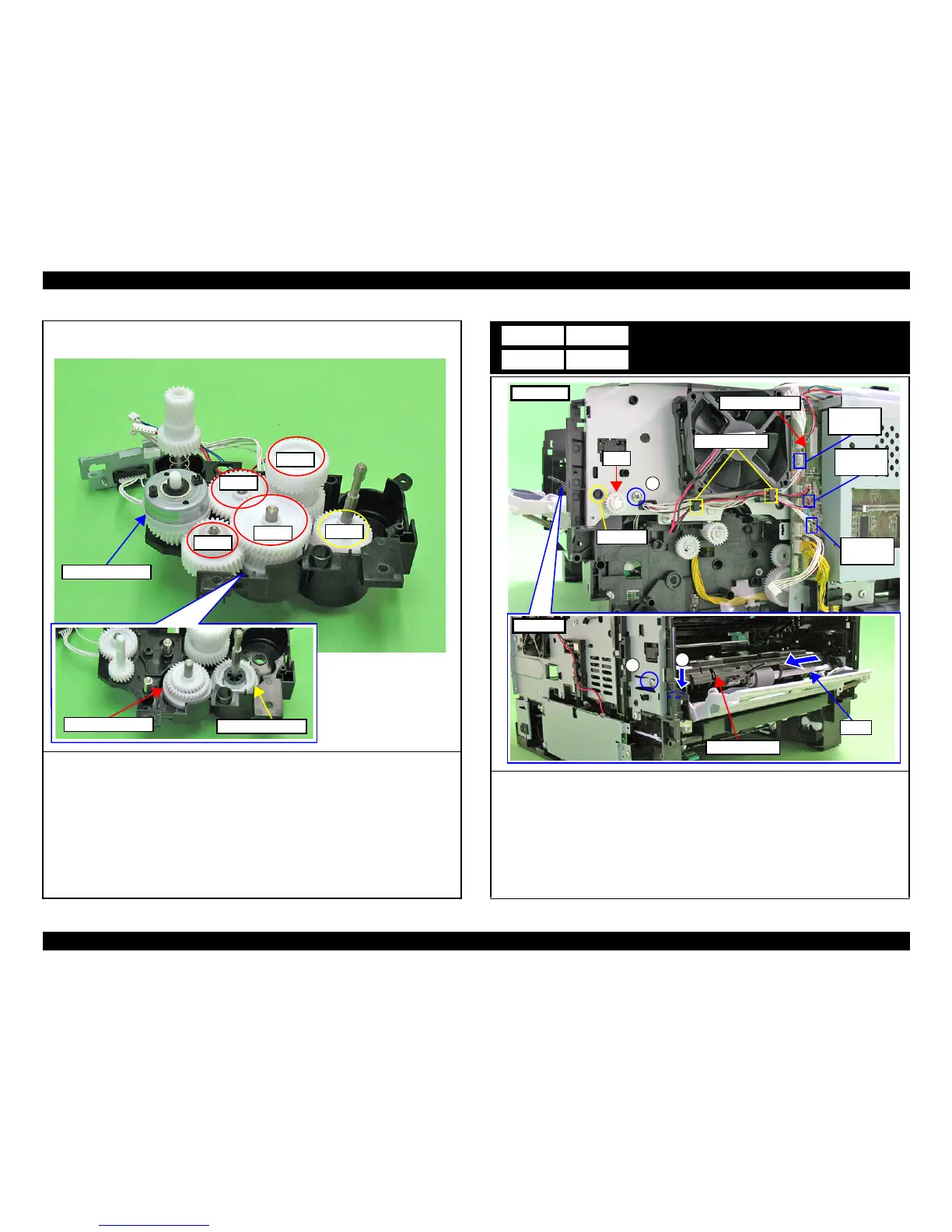

7. Remove the Developing Clutch.
8. Remove the Gear 1, and remove the Paper Feed Clutch.
9. Remove the Gear 2, Gear 3, Gear 4, and Gear 5 in that order, and remove the Registration
Clutch.
Registration Clutch
Paper Feed Clutch
Gear 3
Gear 1
Gear 2
Gear 5
Gear 4
Developing Clutch
Paper Feed Unit
1. Disconnect the three connectors from the Main Board Assy.
2. Release the cables from the two cable retainers.
3. Remove the three screws.
A) Silver / M3x10 / P-Tite: Three pieces
4. Disengage the hook and remove the gear.
5. Remove the shaft from the Paper Feed Roller, and pull out the shaft in the direction of the
arrow.
6. Remove the Paper Feed Unit pulling out its positioning pin and the cables.
B5
C5 D5
Cable Retainers
Gear
A
A
A
Shaft
Left Side
Paper Feed Unit
Right Side
Main Board Assy
Connector
(YC801)
Connector
(YC804)
Connector
(YC814)
Guide Pin
