AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
OPERATING PRINCIPLES Technical Explanation of Print Process 23
Confidential
2.2.4 Transfer/Separation
The transfer/separation section consists of the transfer roller, discharger brush and
paper chute guide. A high voltage generated by the HVPS (High Voltage Power
Supply) is applied to the transfer roller for transfer charging. Paper after transfer is
separated from the drum.

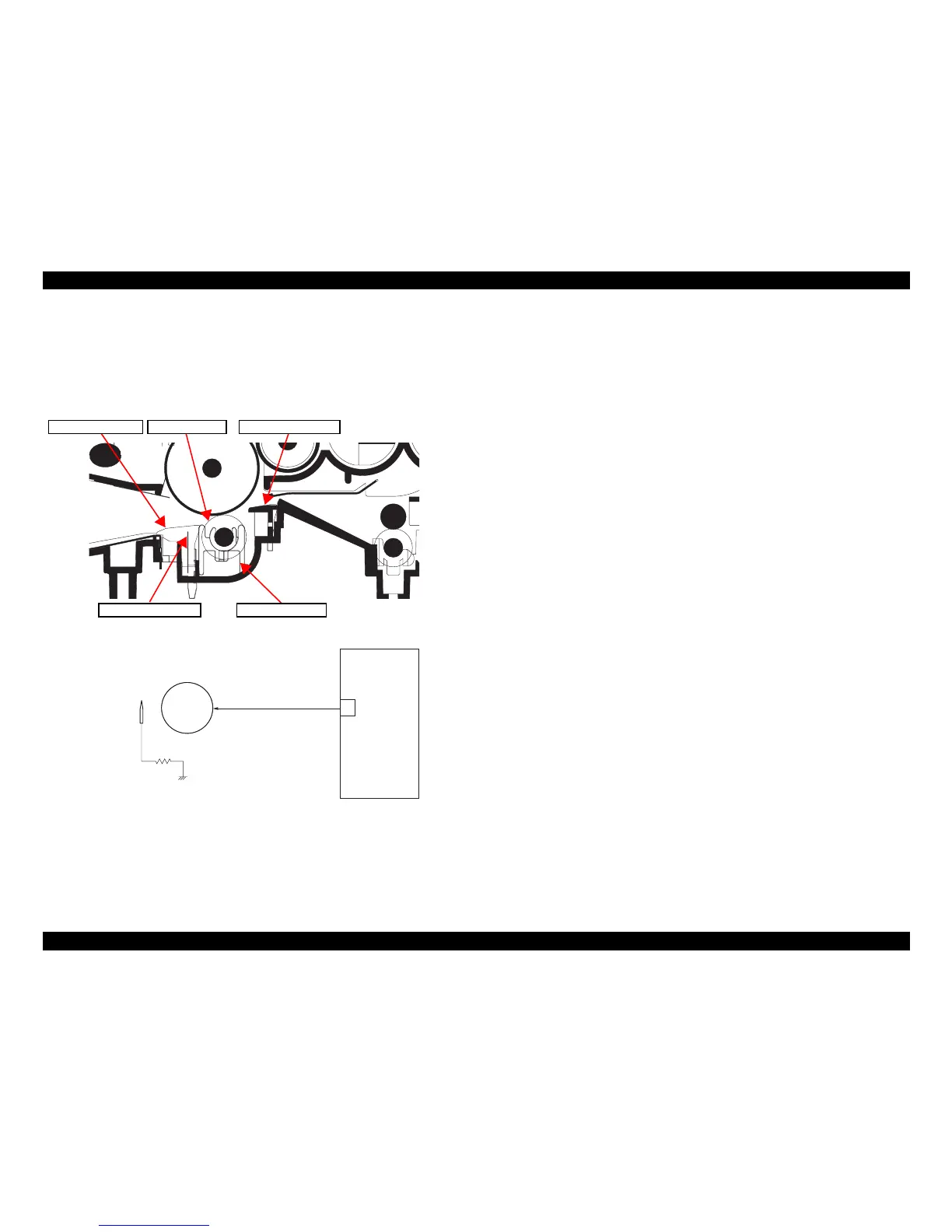

Figure 2-12. Transfer/separation section
Figure 2-13. Transfer/separation section block diagram
Transfer roller
Transfer bushes
Paper chute guide
Discharger brush
DC brush holder
T
Transfer
roller
GND
HVPS
Transfer bias
Discharger
brush
