EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 135
Confidential

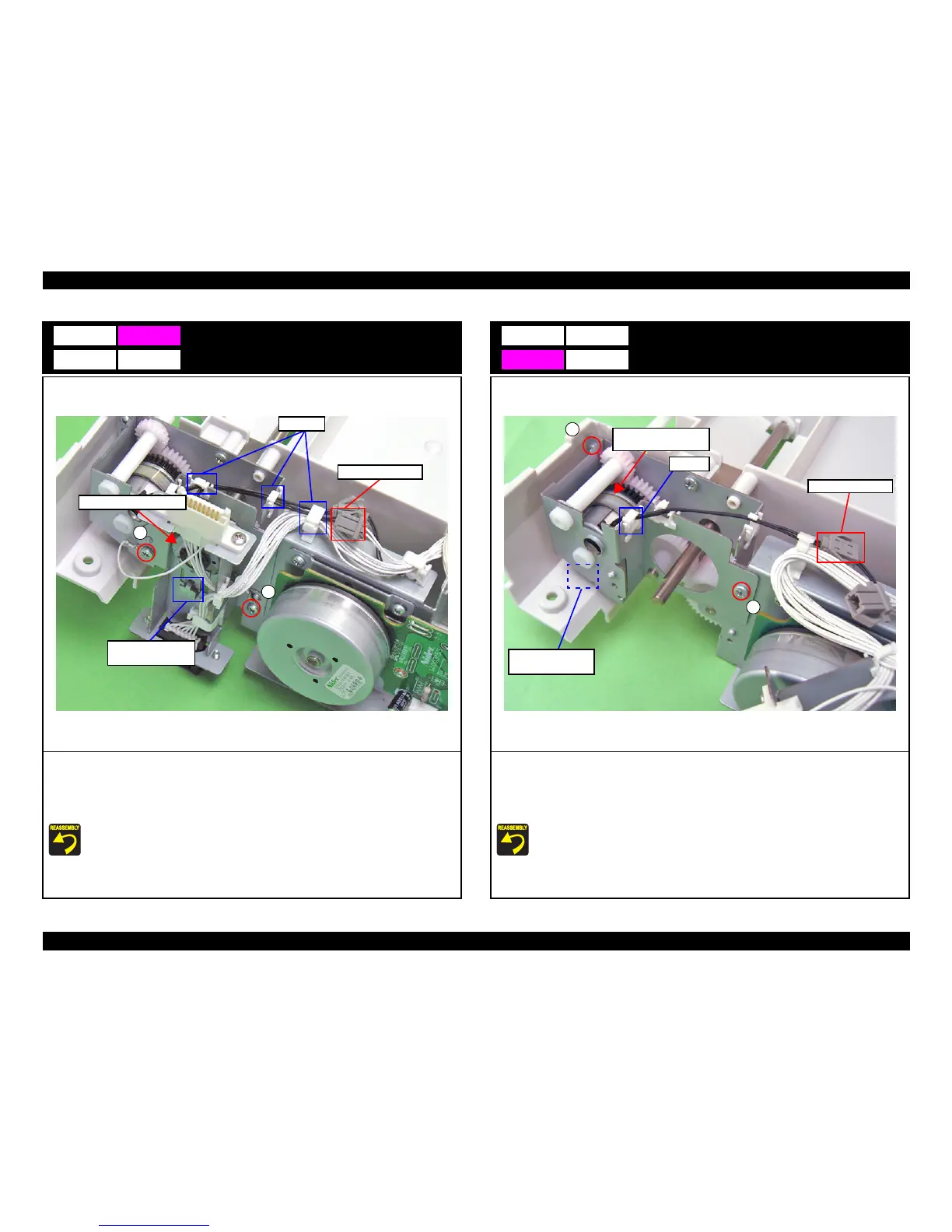

PF Paper Feed Clutch
1. Release the cables from the three clamps and disconnect the relay connector.
2. Remove the two screws that secure the grounding terminal, and remove the metal plate.
A) Silver / M3x6 / S-Tite: Two pieces
3. Remove the PF Paper Feed Clutch.
 Connect the connector to the relay connector connected to the white cable.
 Match the tab of the metal plate with the Rotation Stopper of the Paper Feed Clutch.
 The grounding terminals should be screwed with the metal plate.
B4
C4
A
A
Clamps
PF Paper Feed Clutch
Tab and Rotation
Stopper
Relay Connector
PF Paper Conveyance Clutch
1. Release the cables from the clamp and disconnect the relay connector.
2. Remove the two screws, and remove the metal plate.
A) Silver / M3x6 / S-Tite: Two pieces
3. Remove the PF Paper Conveyance Clutch.
 Connect the connector to the relay connector connected to the black cable.
 Match the tab of the metal plate with the Rotation Stopper of the Paper
Conveyance Clutch.
C5
A
A
PF Paper
Conveyance Clutch
Tab and
Rotation Stopper
Clamp
Relay Connector
