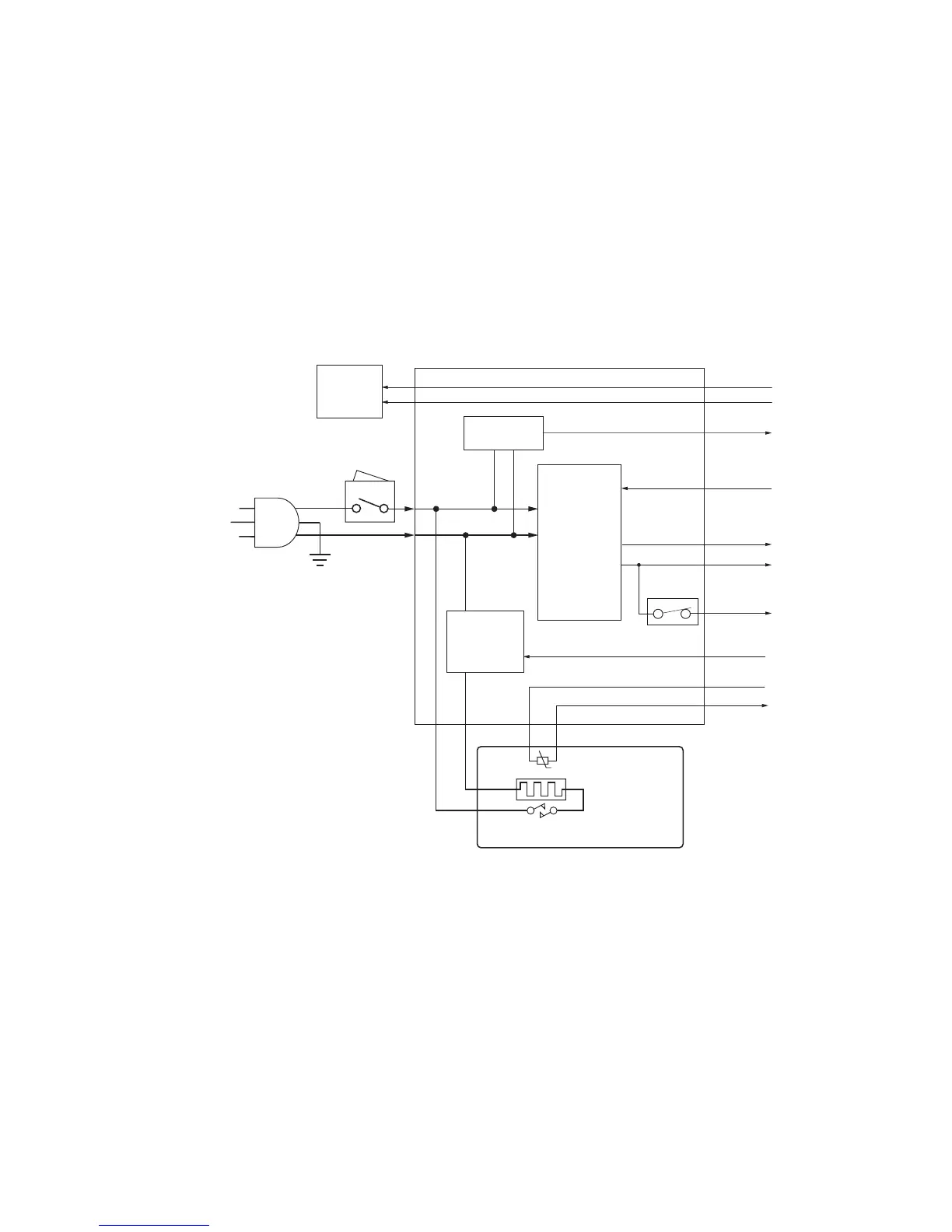

Safety System Wiring Schematic
+5V1
SLEEP
+24V1
+24V2
FAN
+3.3V1
ZCROSS
HEATN
THERM
LVPS
Left
cooling
fan motor
Fuser thermistor
Fuser thermal cutout
Fuser unit
Switching
regulator
circuit
Zero cross
signal circuit
A
C input
Interlock
switch
Power switch
Fuser heater
lamp control
circuit
Fuser
heater lamp
