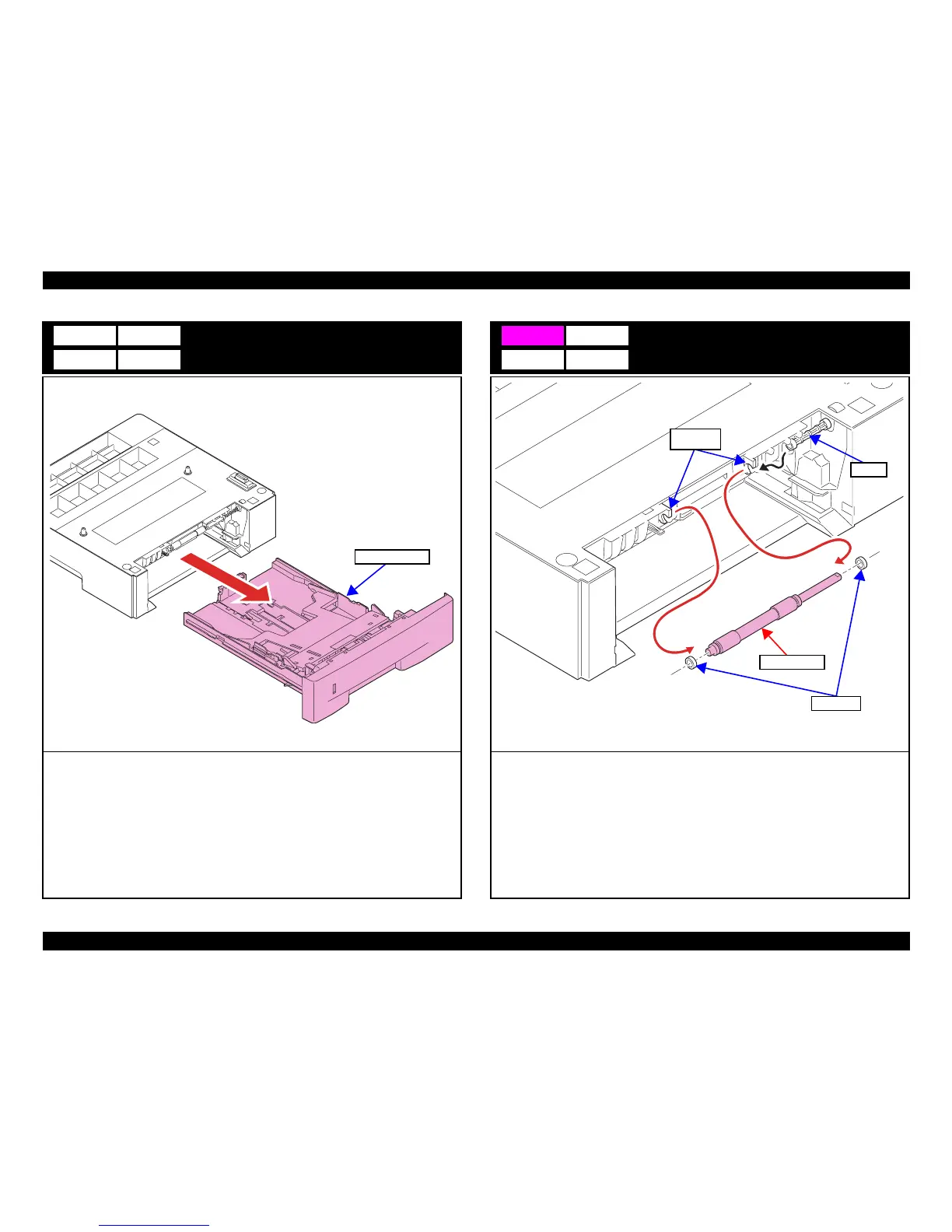

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 128
Confidential
Paper Cassette
1. Remove the Paper Cassette.
A1 B1
C1
Paper Cassette
Middle Roller
1. Remove the Middle Roller from the shaft and the two bearing retainers.
2. Remove the two bearings from the Middle Roller.
A2
Shaft
Middle Roller
Bearings
Bearing
Retainers
