EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B

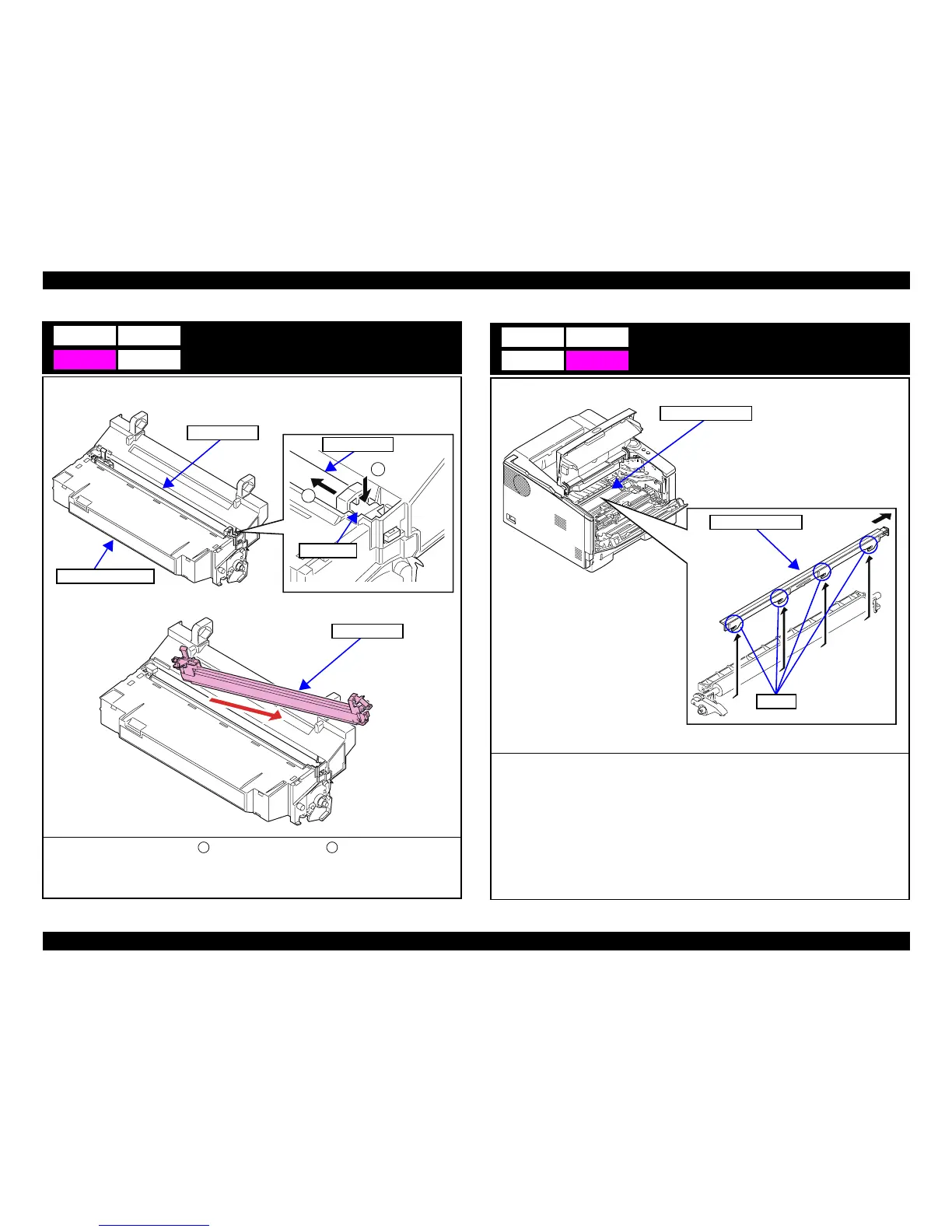

DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 85
Confidential
Charging Unit
1. While pressing the Main Plate ( ), slide the Charging Unit ( ).
2. Pull the Charging Unit upward to remove it.
C3
1
2
Main Plate
Charging Unit
Photoconductor Unit
Charging Unit
Charging Unit
1 2
Transfer Roller
1. Slide the Paper Shoot Guide to disengage the hooks.
2. Remove the Paper Shoot Guide.
D3
Paper Shoot Guide
Hooks
Paper Shoot Guide
