EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 90
Confidential

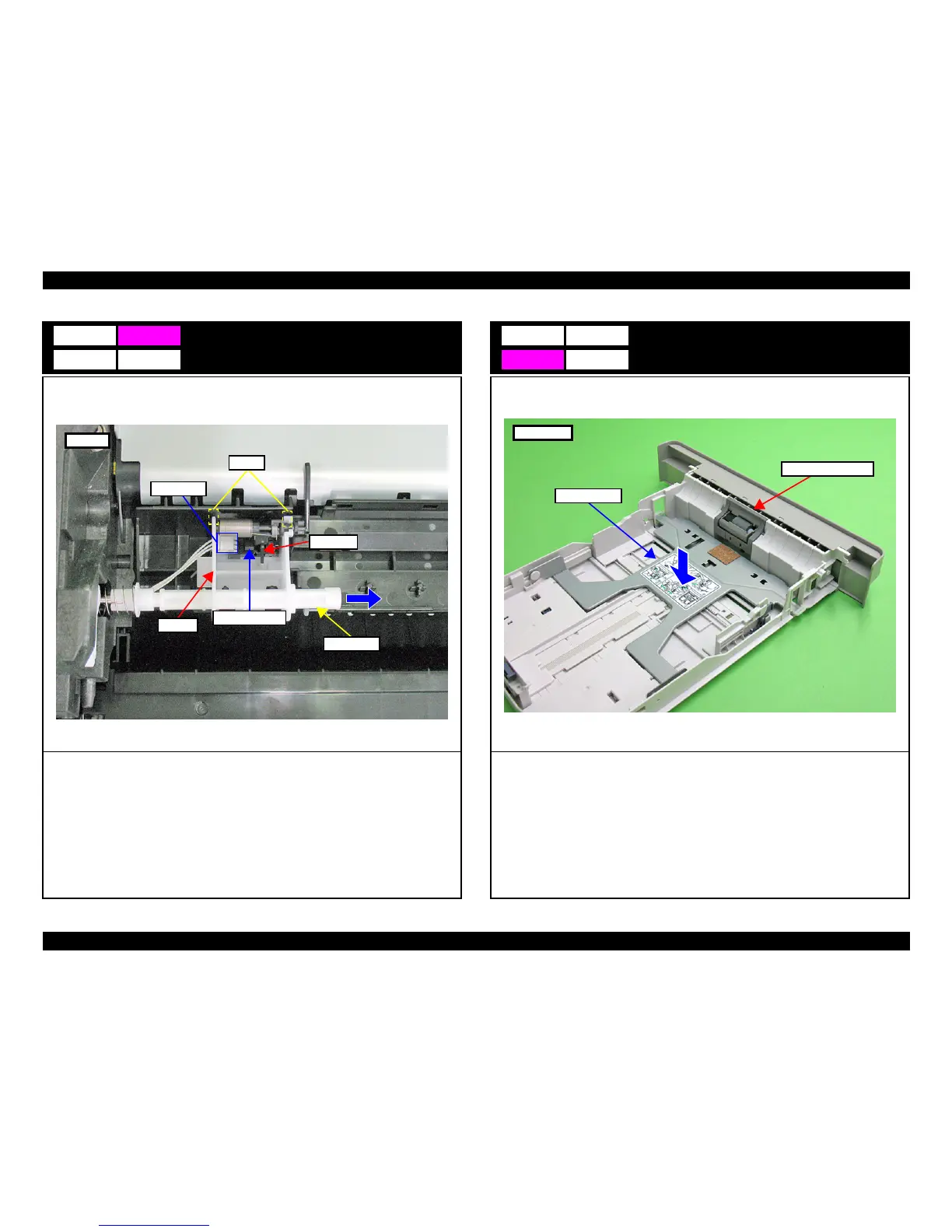

Paper Sensor
1. Put the printer upside down.
2. Pull the Feed Shaft out in the direction of the arrow.
3. Disengage the two hooks and remove the holder.
4. Remove the actuator from the holder.
5. Disengage the hook and remove the Paper Sensor.
6. Disconnect the connector from the Paper Sensor.
B3
Feed Shaft
Actuator
Connector
Paper Sensor
Holder
Bottom
Hooks
Separation Roller (Paper Cassette)
1. Secure the Bottom Plate by pressing it down.
C2
Separation Roller
Bottom Plate
Front side
