EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 89
Confidential

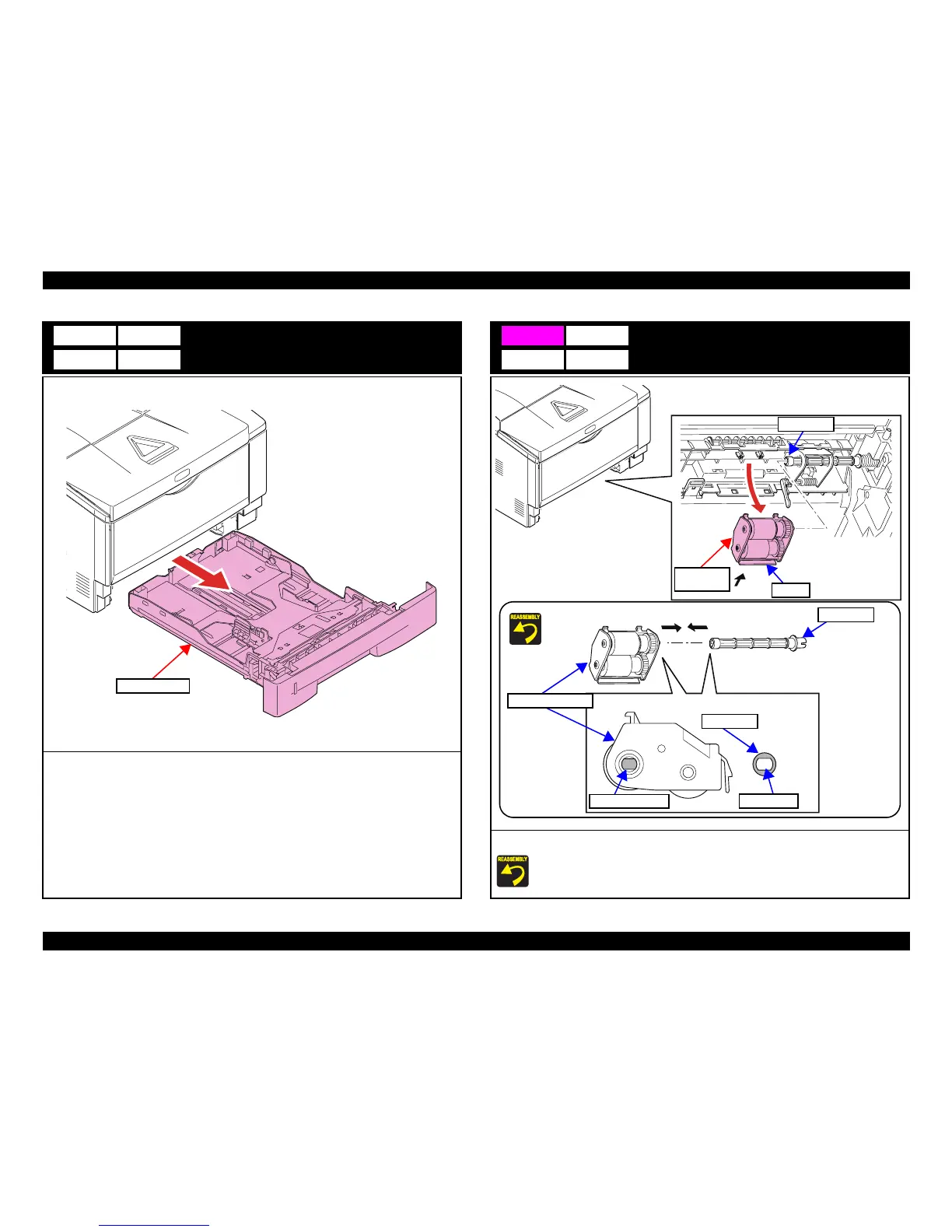

Paper Cassette
1. Remove the Paper Cassette.
A1 B1
C1
Paper Cassette
Paper Feed Roller (Paper Cassette)
1. Push the lever and remove the Paper Feed Roller.
Match the Feed Shaft end with the oval hole on the Paper Feed Roller.
A2 B2
End of the Shaft
Oval shape
Feed Shaft
Paper Feed Roller
Feed Shaft
Feed Shaft
Paper Feed
Roller
Lever
