Epson AcuLaser M2000D User Manual

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 124
Confidential
Laser Scanner Unit

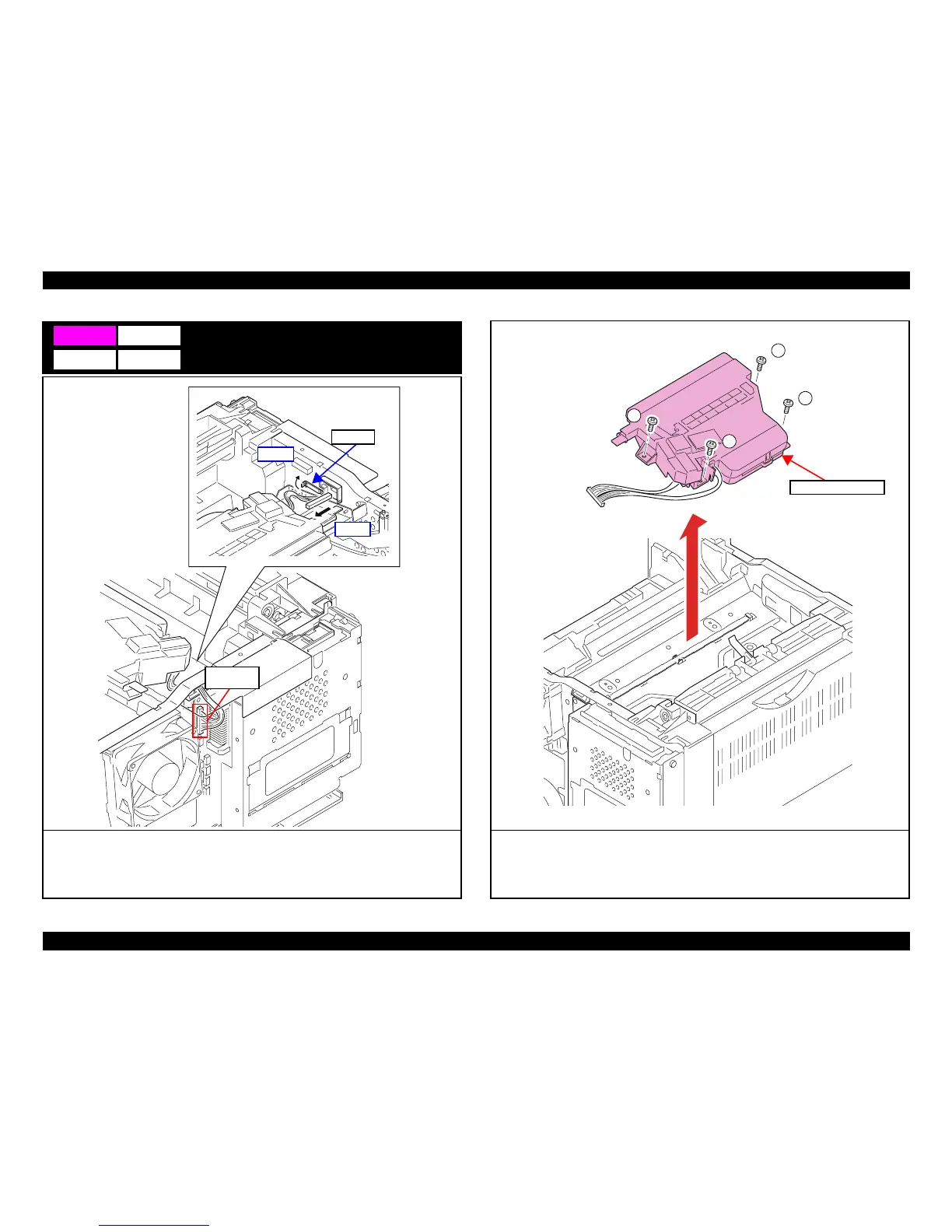

1. Disconnect the connector from the Main Board Assy.
2. Release the cables from the Clamp.
3. Pull the connector toward inside of the printer.
A6 B6
Clamp
Connector
(YC819)
Step 3
Step 2
4. Remove the four screws, and remove the Laser Scanner Unit.
A) Silver / M3x6 / P-Tite: Four pieces
A
A
A
A
Laser Scanner Unit
