2.2.8 Duplex/conveying section
The duplex/conveying section consists of conveying path which sends the paper sent
from the eject section to the paper feed/conveying section when duplex printing.

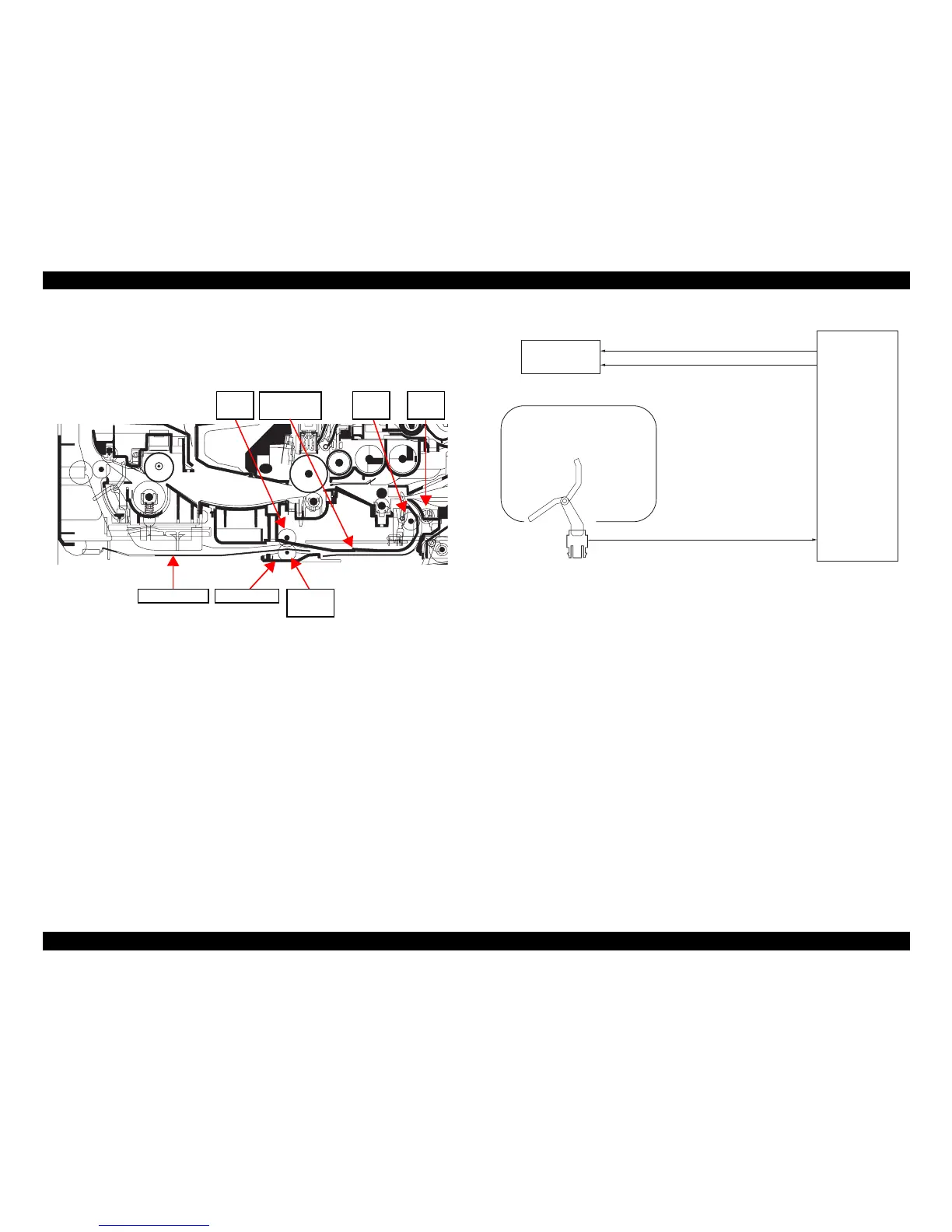

Figure 2-20. Duplex/conveying section
Figure 2-21. Duplex/paper conveying section block diagram
DU cover B DU holder
Middle
pulley B
DU
roller
Feed
pulley
Feed
roller
Lower base
cover
EXITN
DUDR1
DUDR2
YC807-3
YC817-1
YC817-3
Fuser unit
Exit sensor
Duplex solenoid
Main Board ASSY.
