EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 118
Confidential

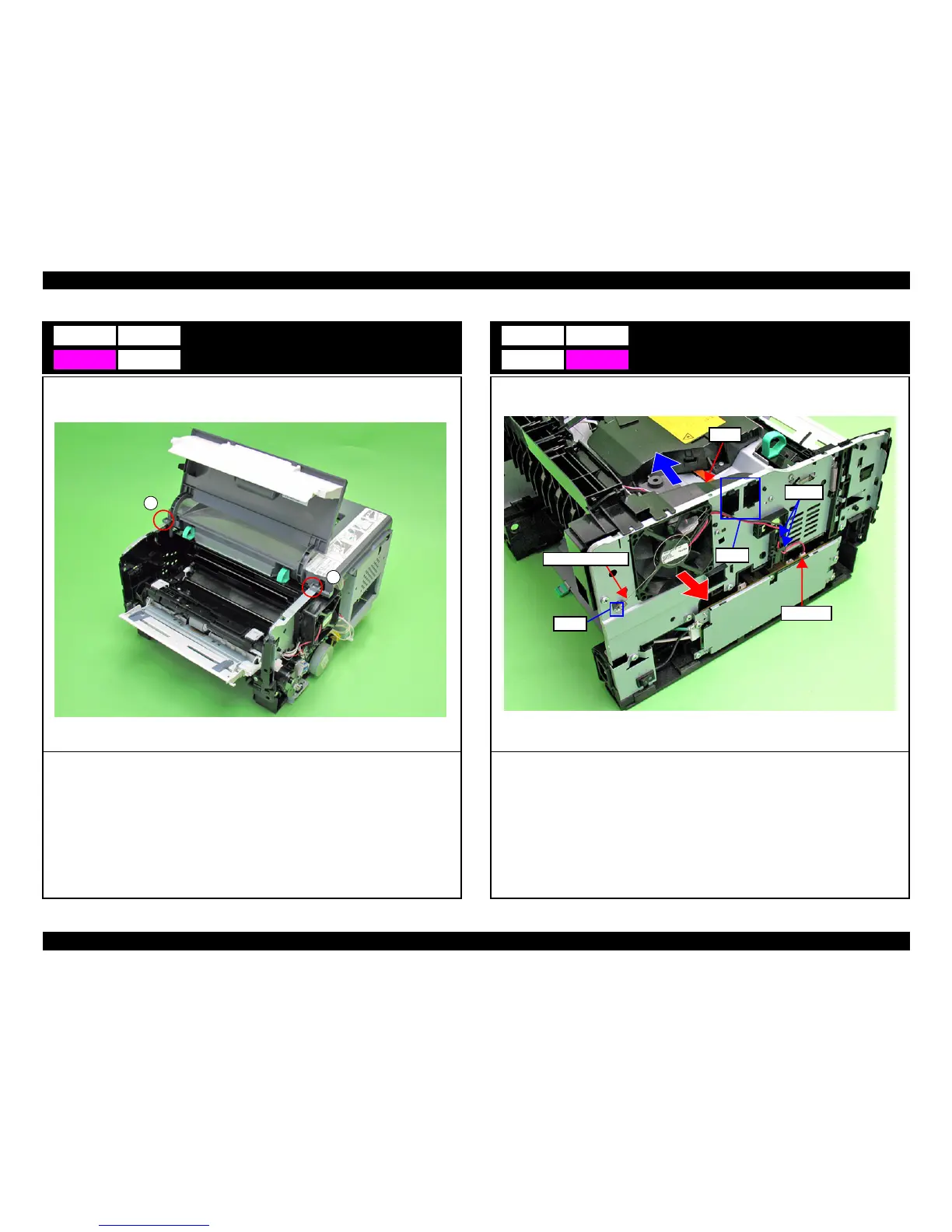

Top Cover
1. Remove the two screws, and remove the Top Cover.
A) Silver / M3x6 / P-Tite: Two pieces
C5 D5
A
A
Left Cooling Fan Motor
1. Disconnect the connector from the LVPS Unit, and release the cables from the two Clamps.
2. Disengage the four hooks and remove the Duct.
3. Disengage the grounding spring from the hook, and remove the Left Cooling Fan Motor.
D6
Grounding Spring
Duct
Clamp
Connector
Hook
Hook
