EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 95
Confidential

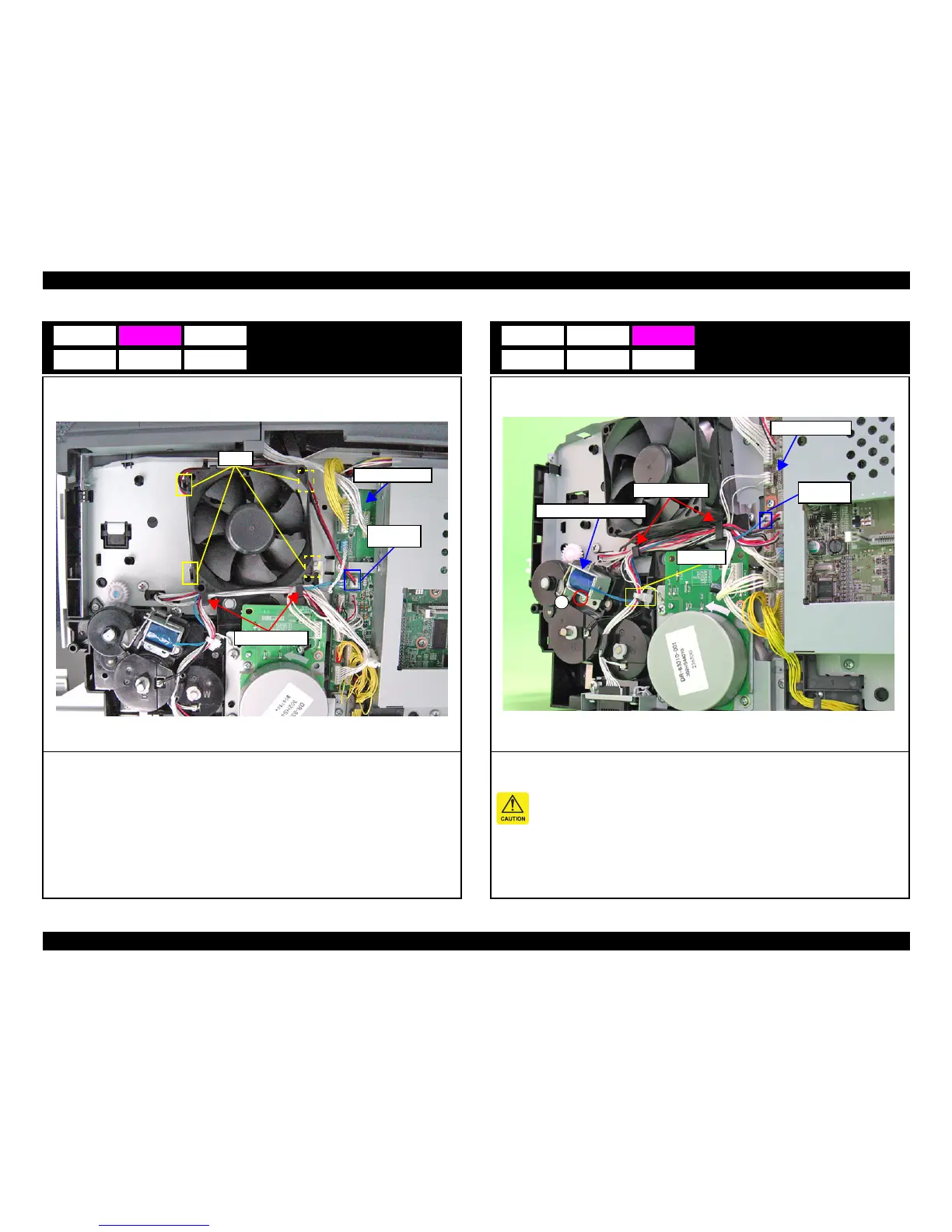

Right Cooling Fan Motor
1. Disconnect the connector from the Main Board Assy.
2. Release the cables from the two cable retainers.
3. Disengage the four hooks and remove the Right Cooling Fan Motor.
B3
Hooks
Cable Retainer
Main Board Assy
Connector
(YC815)
MP Paper Feed Solenoid
1. Disconnect the connector from the Main Board Assy.
2. Release the cables from the two cable retainers.
Be careful not to damage the cables when cutting the cable tie in the following step.
3. Cut the Cable Tie and release the cables.
4. Remove the screw, and remove the MP Paper Feed Solenoid.
A) Silver / M3x6 / P-Tite: One piece
C3
MP Paper Feed Solenoid
Connector
(YC809)
Cable Retainer
Cable Tie
Main Board Assy
A
