EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 73
Confidential

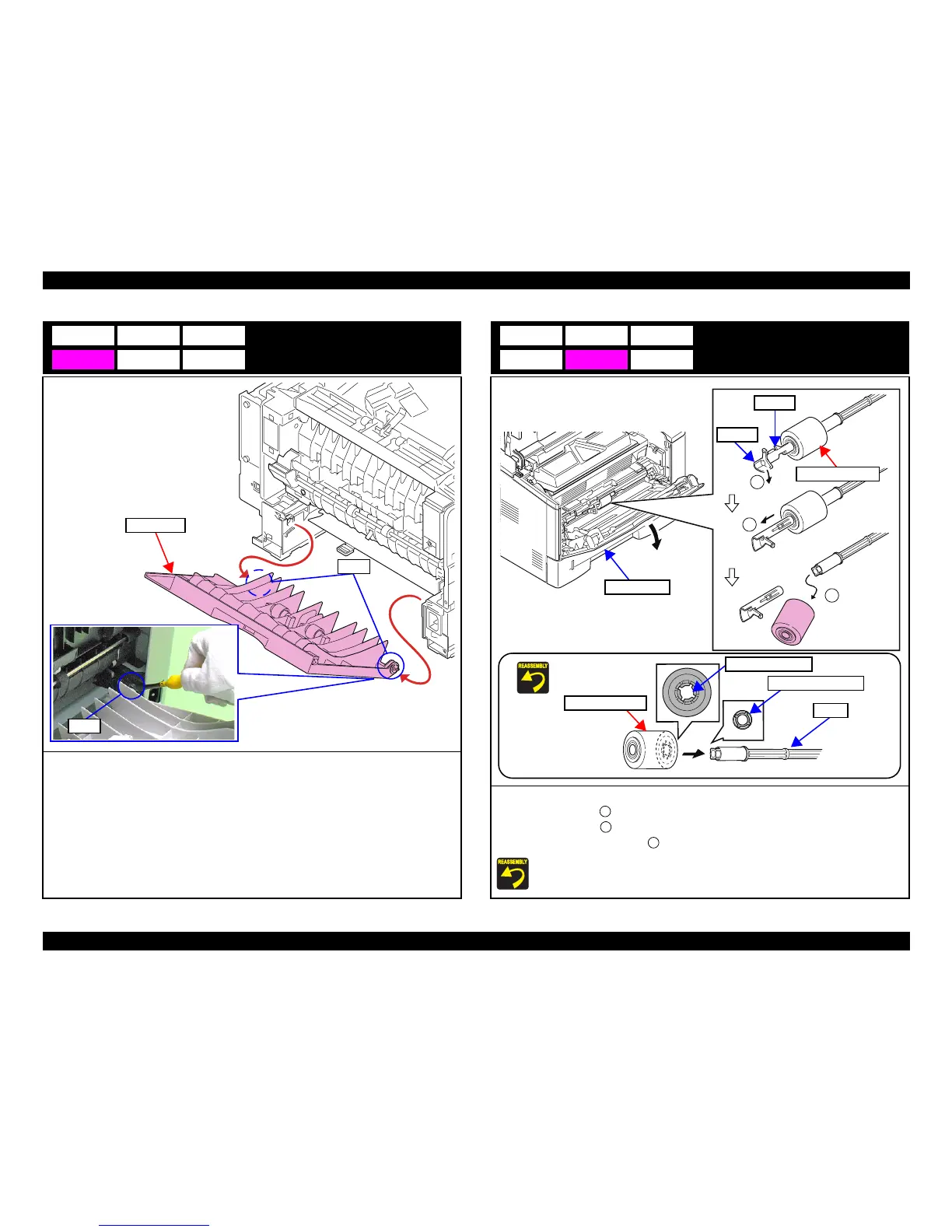

Rear Cover
1. Open the Rear Cover.
2. Pull out the right shaft of the Rear Cover (as seen from the rear) using a flat-blade
screwdriver or similar tool, and remove the Rear Cover.
C1
Rear Cover
Shaft
Shaft
Paper Feed Roller (MP Tray)
1. Open the Front Cover.
2. Pull the lever down ( ).
3. Slide the holder out ( ).
4. Remove the Paper Feed Roller ( ).
Match the shaft end with the hole for insertion of the Paper Feed Roller.
D1
Shaft
Paper Feed Roller
Hole for insertion
Shape of the Shaft end
Lever
Paper Feed Roller
Holder
Front Cover
1
2
3
1
2
3
