DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 125
Confidential
Eraser Lamp

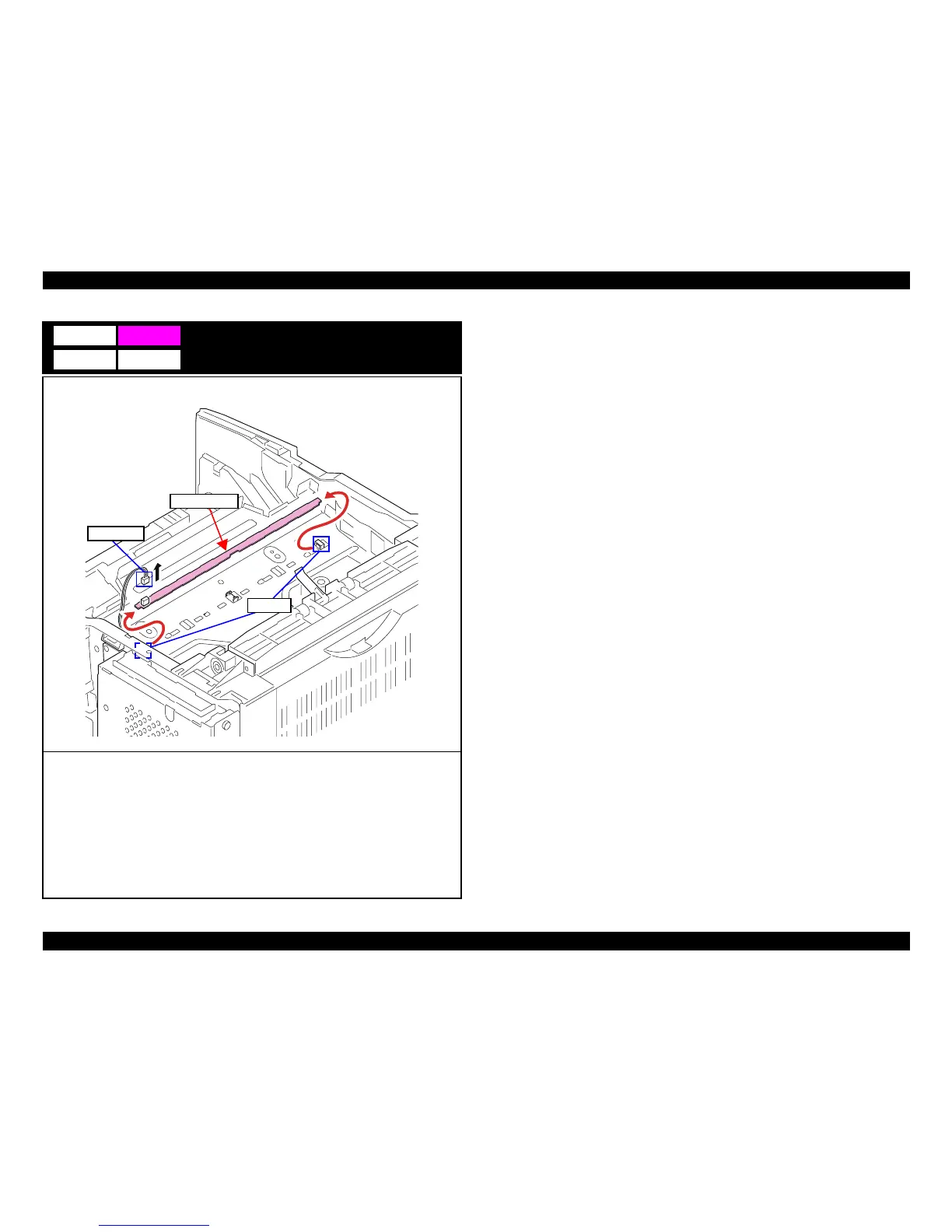

1. Disconnect the connector from the Eraser Lamp.
2. Remove the Eraser Lamp from both left and right holders.
B7
Connector
Eraser Lamp
Holders
