EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 111
Confidential

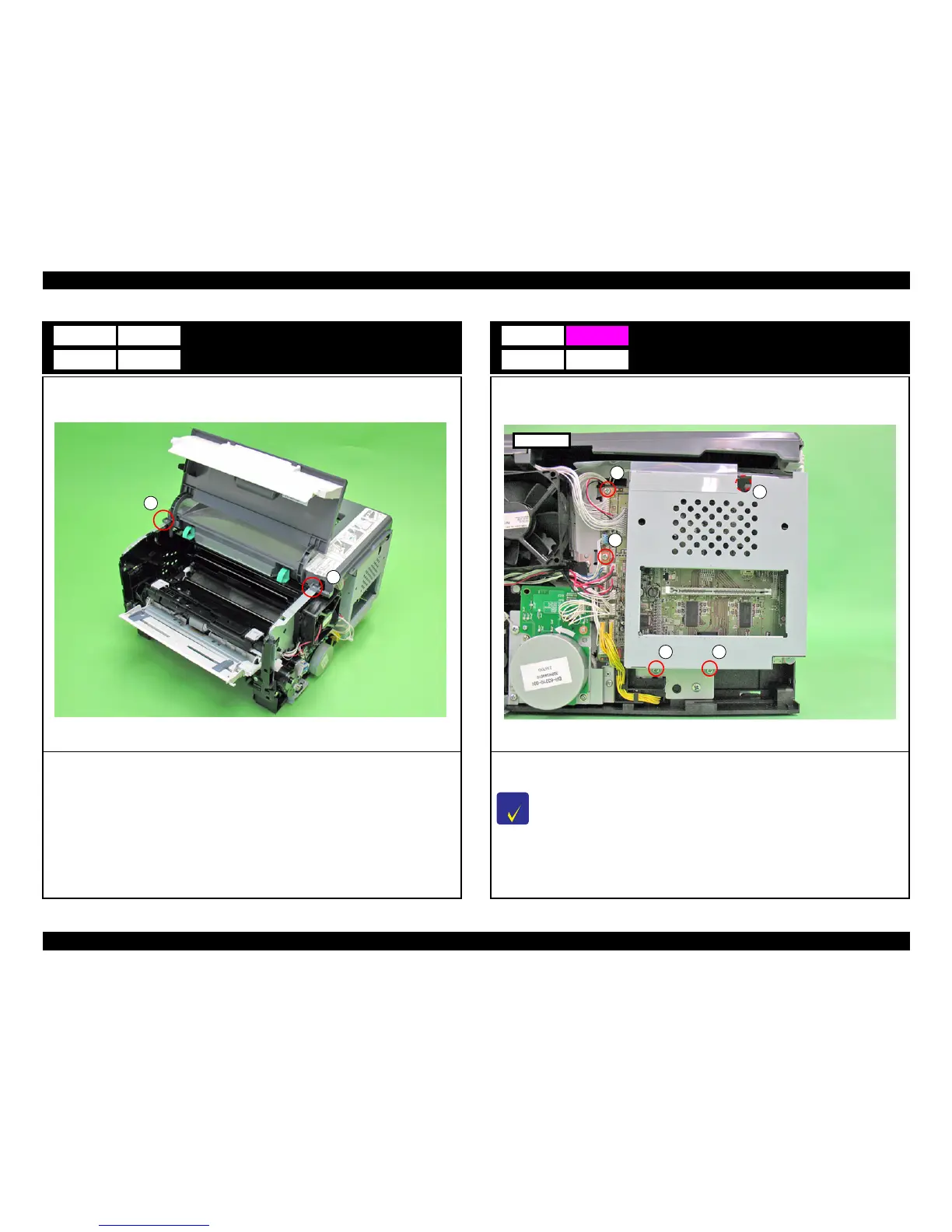

Top Cover
1. Remove the two screws, and remove the Top Cover.
A) Silver / M3x6 / P-Tite: Two pieces
B6
A
A
Paper Eject Unit
1. Remove the five screws and remove the Shield Box together with the Main Board Assy.
A) Silver / M3x6 / S-Tite: Five pieces
C H E C K
P O I N T
Remove the Shield Box from the main unit with the cables connected to the Main
Board Assy. Be careful not to disconnect the connectors by making the Shield Box
apart from the main unit too much.
B7
Right Side
A
A
A A
A
