DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 112
Confidential

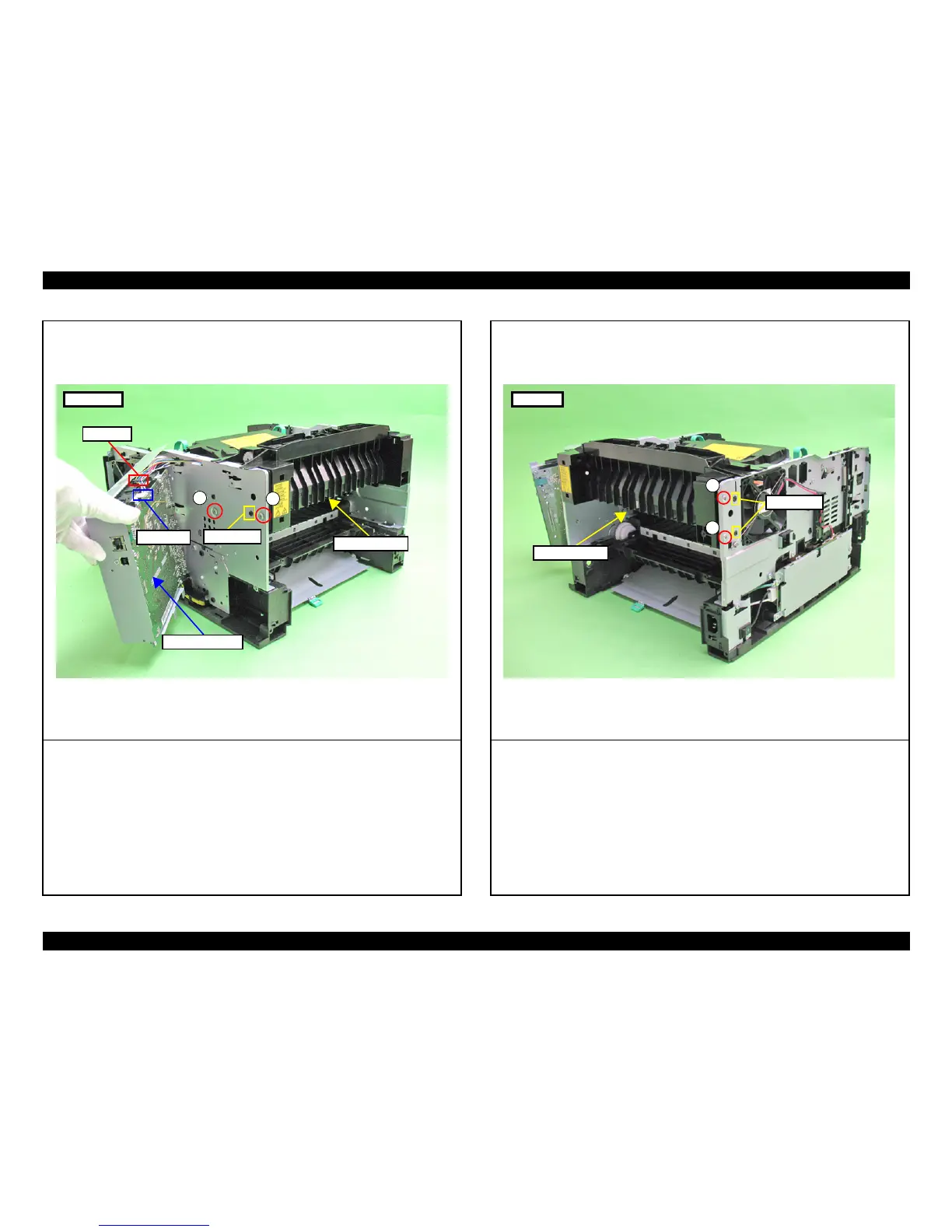

2. Disconnect the connector from the Main Board Assy, and release the cable from the Clamp.
3. Remove the two screws.
B) Silver / M3x10 / P-Tite: Two pieces
4. Pull out the guide pin of the Paper Eject Unit from the hole.
B
B
Connector
Main Board Assy
Guide Pin
Right Side
Clamp
Paper Eject Unit
5. Remove the two screws.
B)Silver / M3x10 / P-Tite: Two pieces
6. Pull out the guide pin of the Paper Eject Unit from the hole, and remove the Paper Eject
Unit.
B
B
Paper Eject Unit
Guide Pin
Left Side
