Epson AcuLaser M2000D - Option Paper Feeder

AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
OPERATING PRINCIPLES Electrical parts layout 19
Confidential
OPTION PAPER FEEDER

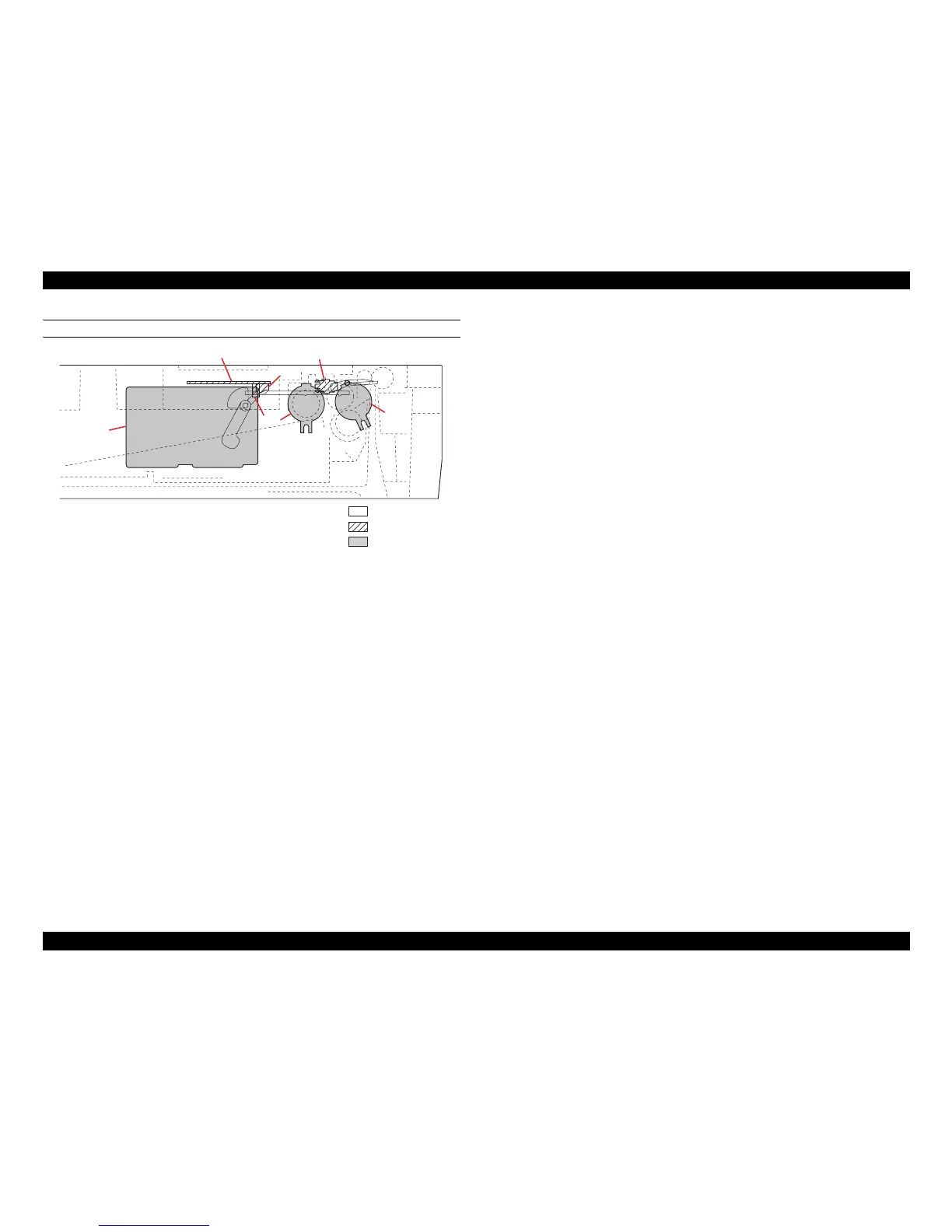

Figure 2-4. Option Paper Feeder
1. PF Main Board
Controls electrical components in the paper feeder and serial communications with
the printer.
2. PF paper sensor
Detects the presence of paper in the cassette.
3. PF cassette switch
Detects the existence of the cassette.
4. PF paper feed sensor
Detects paper jam in the paper feeder.
5. PF paper feed motor
Drives the paper feed mechanism in the paper feeder.
6. PF paper feed clutch
Controls the drive of the paper feed roller.
7. PF paper conveying clutch
Controls the drive of the middle roller.
5
1
2
3
4
6
7
Machine inside
Machine left
Machine right
