EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 116
Confidential

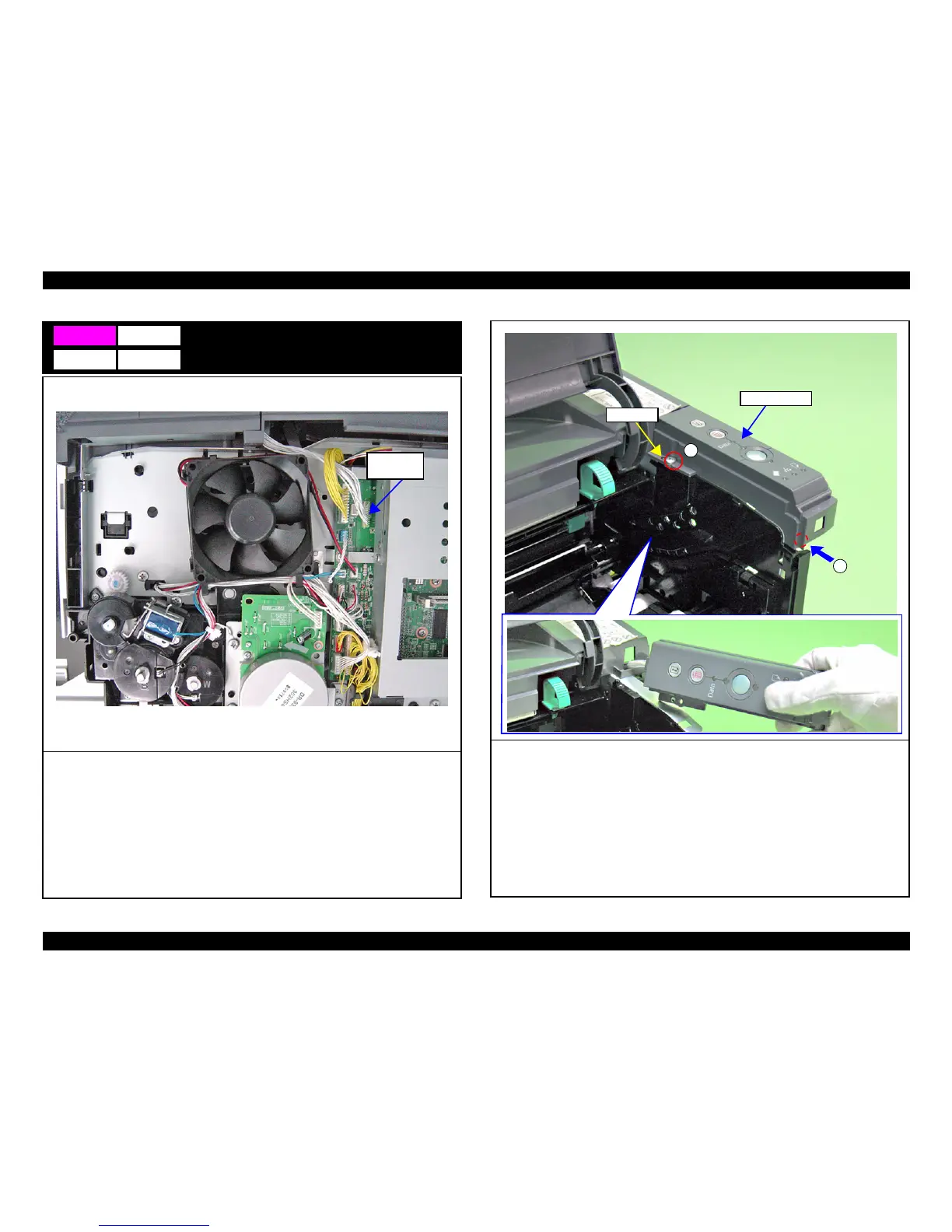

Control Panel
1. Disconnect the connector from the Main Board Assy.
A3 B3
C3 D3
Connector
(CN405)
2. Open the Top Cover.
3. Remove the two screws.
A) Silver / M3x6 / S-Tite: One piece
B) Silver / M3x10 / P-Tite: One piece
4. Pull out the tab from the guide pin, and remove the Control Panel while pulling out the
cable.
B
A
Control Panel
Guide Pin
