AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
OPERATING PRINCIPLES Technical Explanation of Print Process 26
Confidential
2.2.7 Paper exit section
The paper exit section transports the paper which passed the fuser unit towards the top
tray. The paper which passed through the fuser unit turns on the actuator (exit sensor)
in the fuser unit, and is led by the guide comprised of the rear cover, frame and the FD
cover guide, finally reaching the upper FD roller. The paper is delivered to the top tray
by the rotation of the upper FD roller.

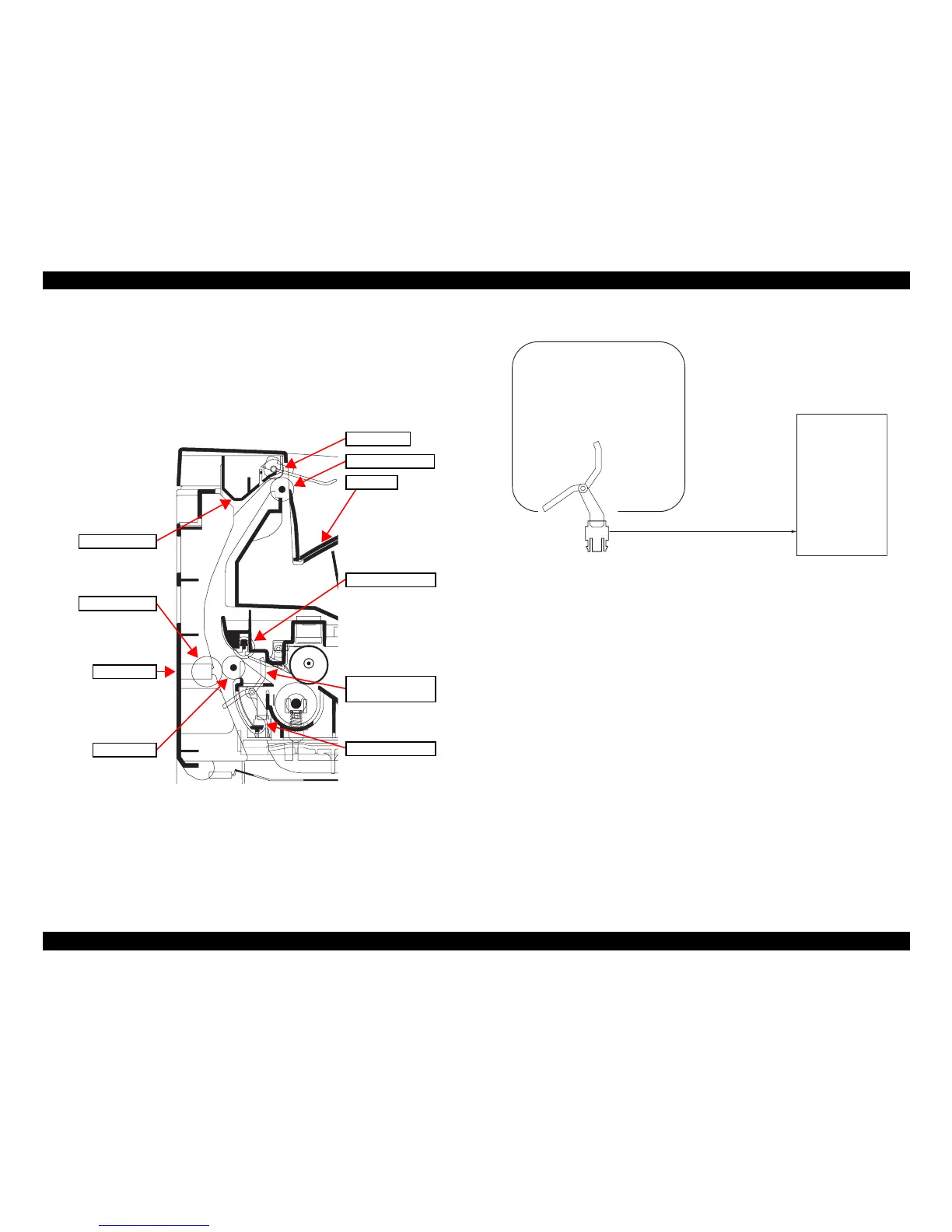

Figure 2-18. Paper exit section
Figure 2-19. Paper exit section block diagram
Rear cover
Exit roller
Middle pulley
Fuser exit pulley
Exit pulley
Upper FD roller
Actuator
(exit sensor)
Exit sensor
Top tray
FD cover
EXITN
YC807-3
Fuser unit
Exit sensor
Main Board ASSY.
