EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 139
Confidential

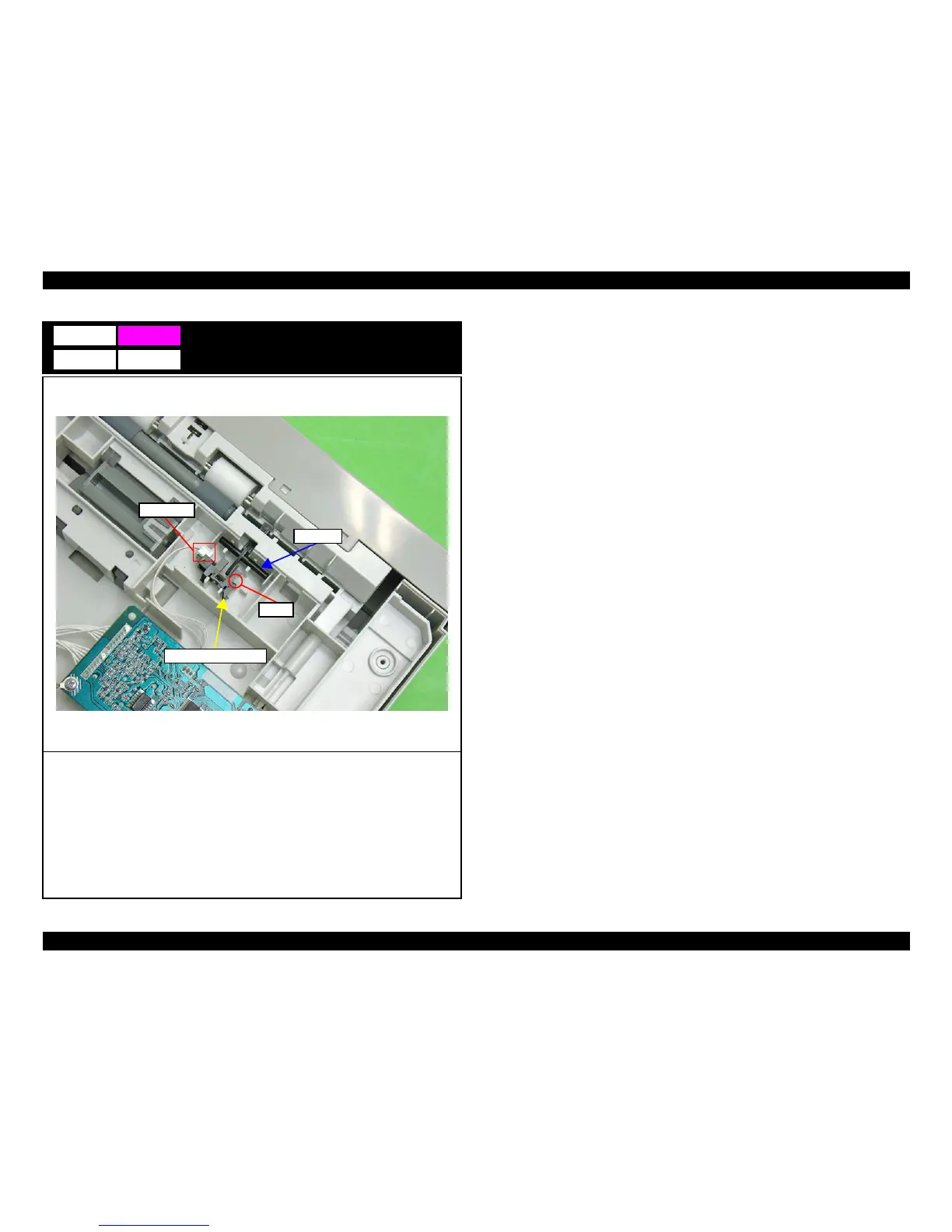

PF Paper Feed Sensor
1. Remove the actuator.
2. Disengage the hook and remove the PF Paper Feed Sensor.
3. Disconnect the connector from the PF Paper Feed Sensor.
B2
PF Paper Feed Sensor
Actuator
Connector
Hook
