EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 134
Confidential

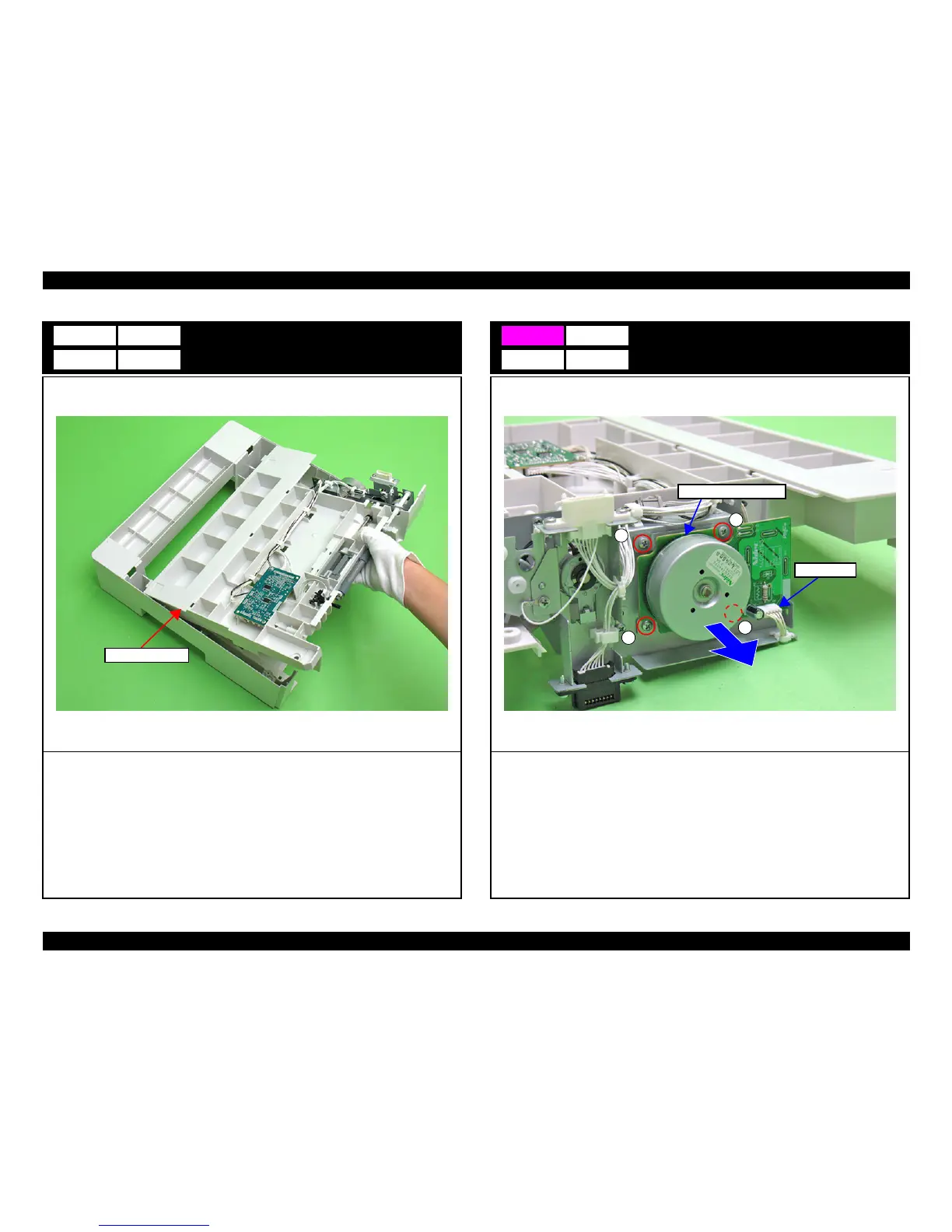

Paper Feed Unit
1. Remove the Paper Feed Unit upward.
A3 B3
C3
Paper Feed Unit
PF Paper Feed Motor
1. Remove the four screws.
A) Silver / M3x6 / S-Tite: Four pieces
2. Disconnect the connector from the PF Paper Feed Motor, and remove the motor.
A4
Connector
A
A
A
A
PF Paper Feed Motor
