EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 129
Confidential

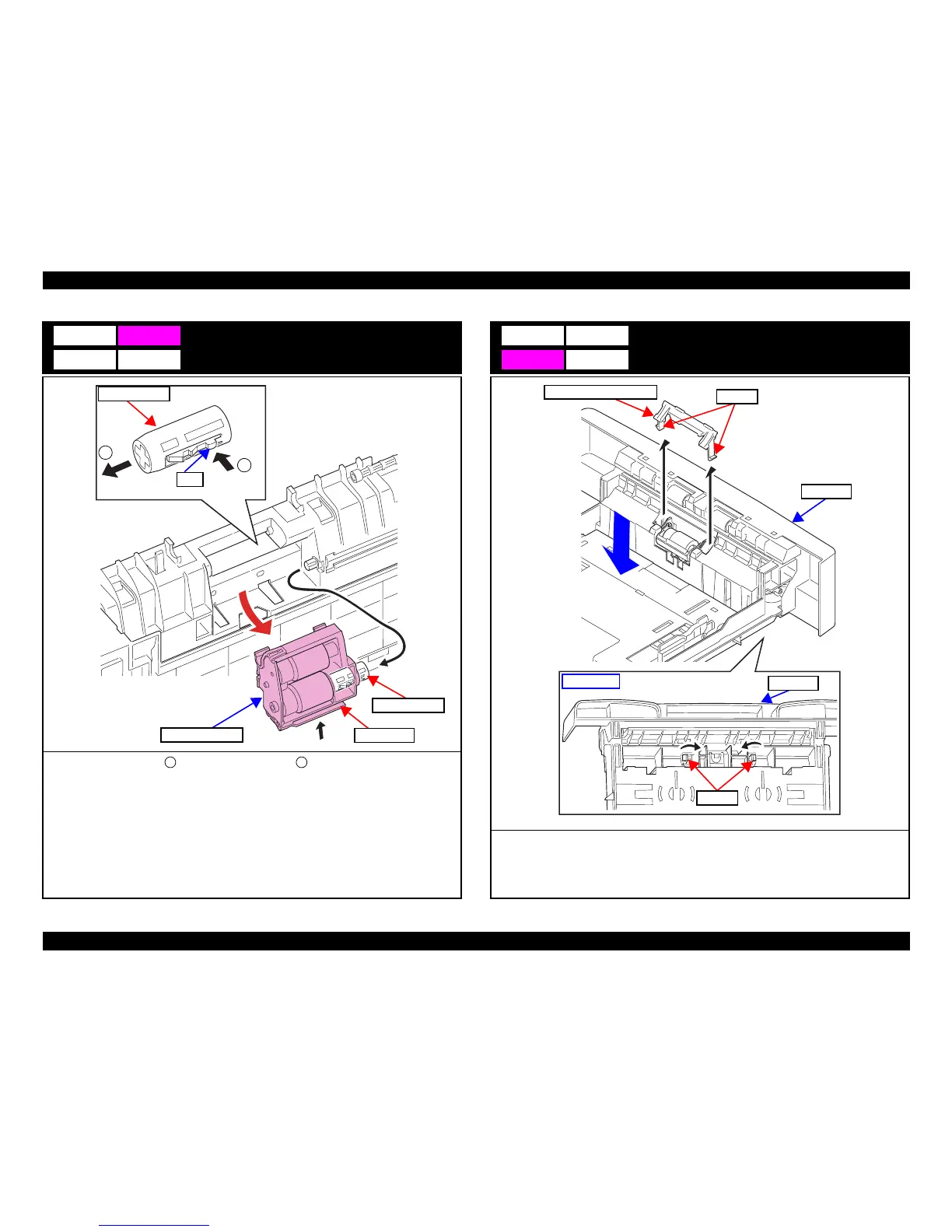

Paper Feed Roller
1. While pressing the tab ( ), slide the Unlock Holder ( ).
2. Push the Lock Lever and remove the Paper Feed Roller.
B2
Tab
1
2
Unlock Holder
Paper Feed Roller
Unlock Holder
Lock Lever
1 2
Separation Roller
1. Secure the Bottom Plate by pressing it down.
2. Disengage the two hooks from the back of the cassette, and remove the Separation Roller
Guide.
C2
Hooks
Back side
Cassette
Cassette
Hooks
Separation Roller Guide
