EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 78
Confidential

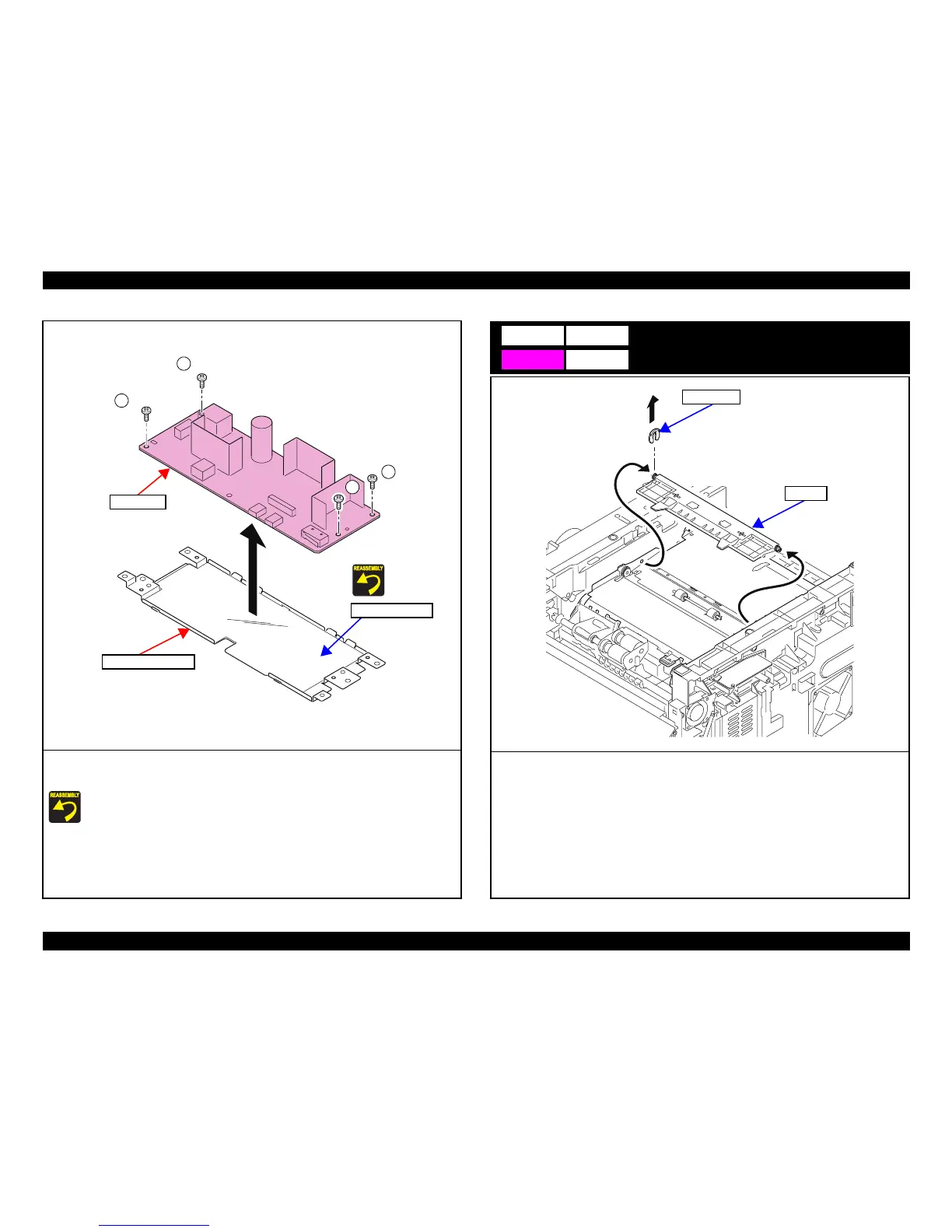

4. Remove the four screws, and remove the LVPS Unit from the Power Supply Plate.
C) Silver / M3x6 / S-Tite: Four pieces
Make sure the Insulating Sheet is properly positioned.
C
C
C
C
Power Supply Plate
LVPS Unit
Insulating Sheet
HVPS Unit
1. Put the printer upside down.
2. Remove the Resin Ring.
3. Remove the holder.
C3
Resin Ring
Holder
