EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 79
Confidential

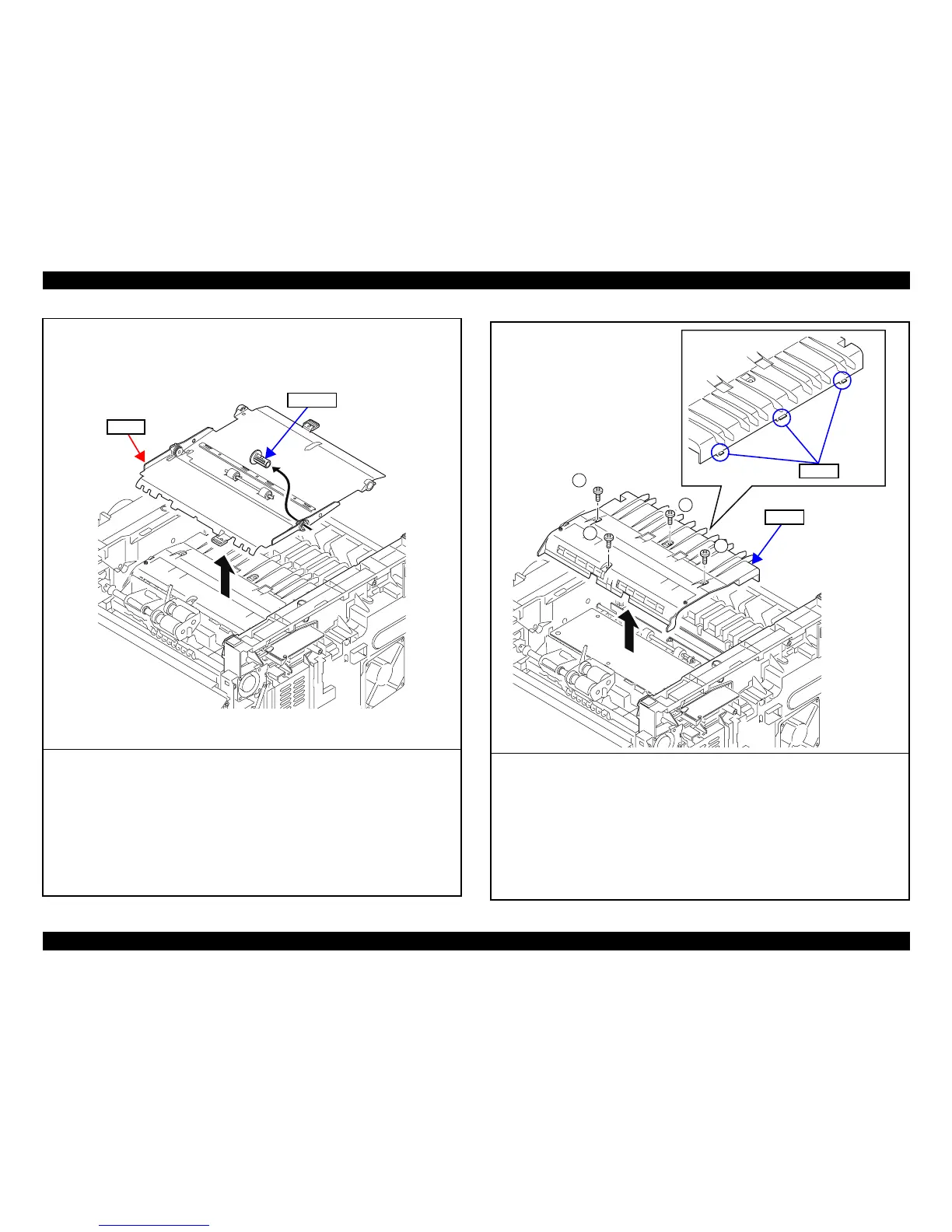

4. Pull out the bushing.
5. Remove the cover.
Bushing
Cover
6. Remove the four screws.
A) Silver / M3x6 / P-Tite: Four pieces
7. Disengage the three hooks and remove the cover.
Hooks
A
A
A
A
Cover
