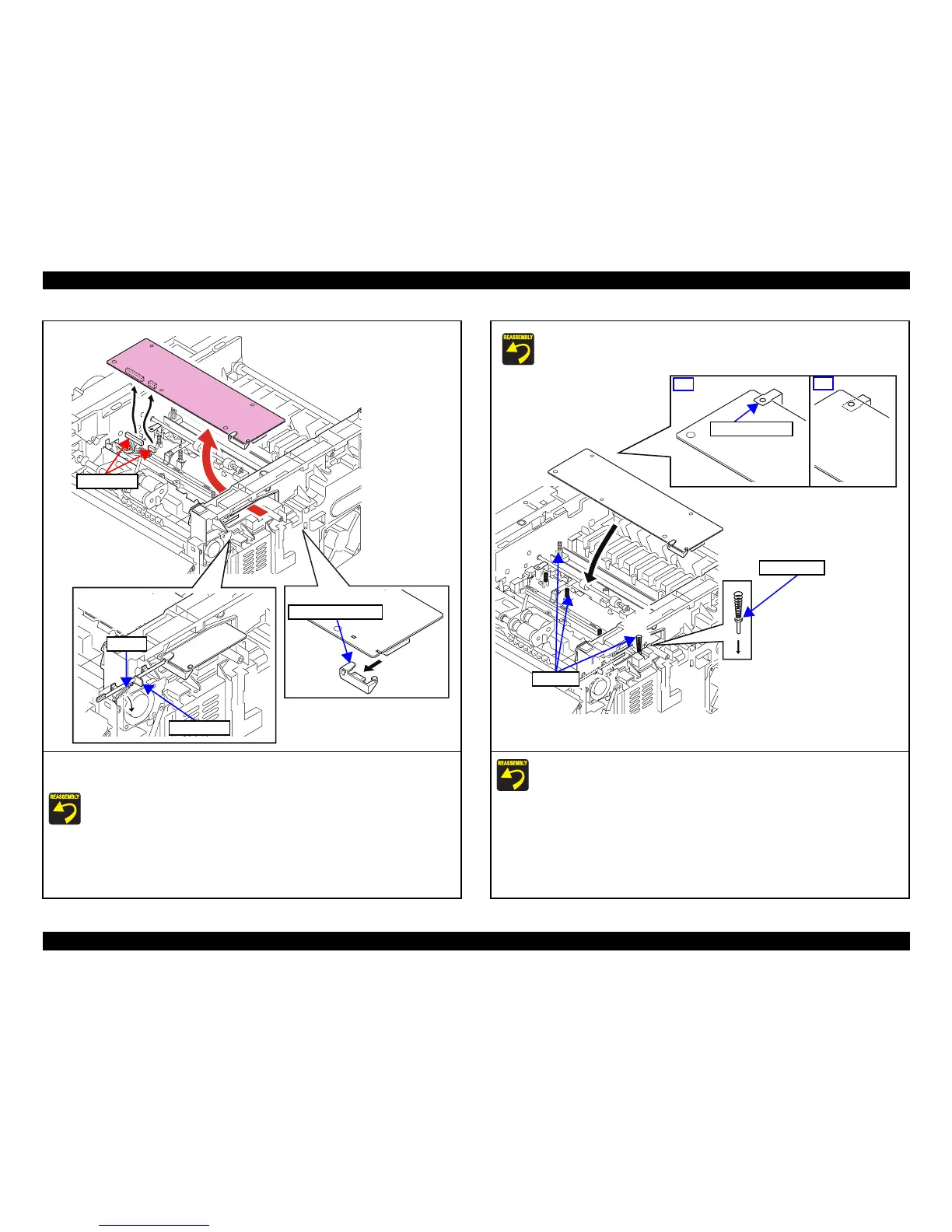

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 80
Confidential
8. Remove the spring from the main unit and the Cassette Pin.
9. Slide the Cassette Pin to remove it.
When attaching the spring, first hitch its one end to the main frame, and then hitch the
other end to the Cassette Pin.
10.Slightly lift the HVPS Unit to disconnect the two connectors, and then remove the HVPS
Unit.
11.Remove the Cassette Pin Holder.
Cassette Pin Holder
Cassette Pin
Connector
Spring
The grounding plate end should come above the HVPS Unit.
Make sure the Contact Pin is properly positioned.
The contact points on the HVPS Unit should properly contact with the springs.
OK
NG
Grounding Plate
Contact Pin
Springs
