Epson AcuLaser M2000D - RFID Board

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 105
Confidential
RFID Board

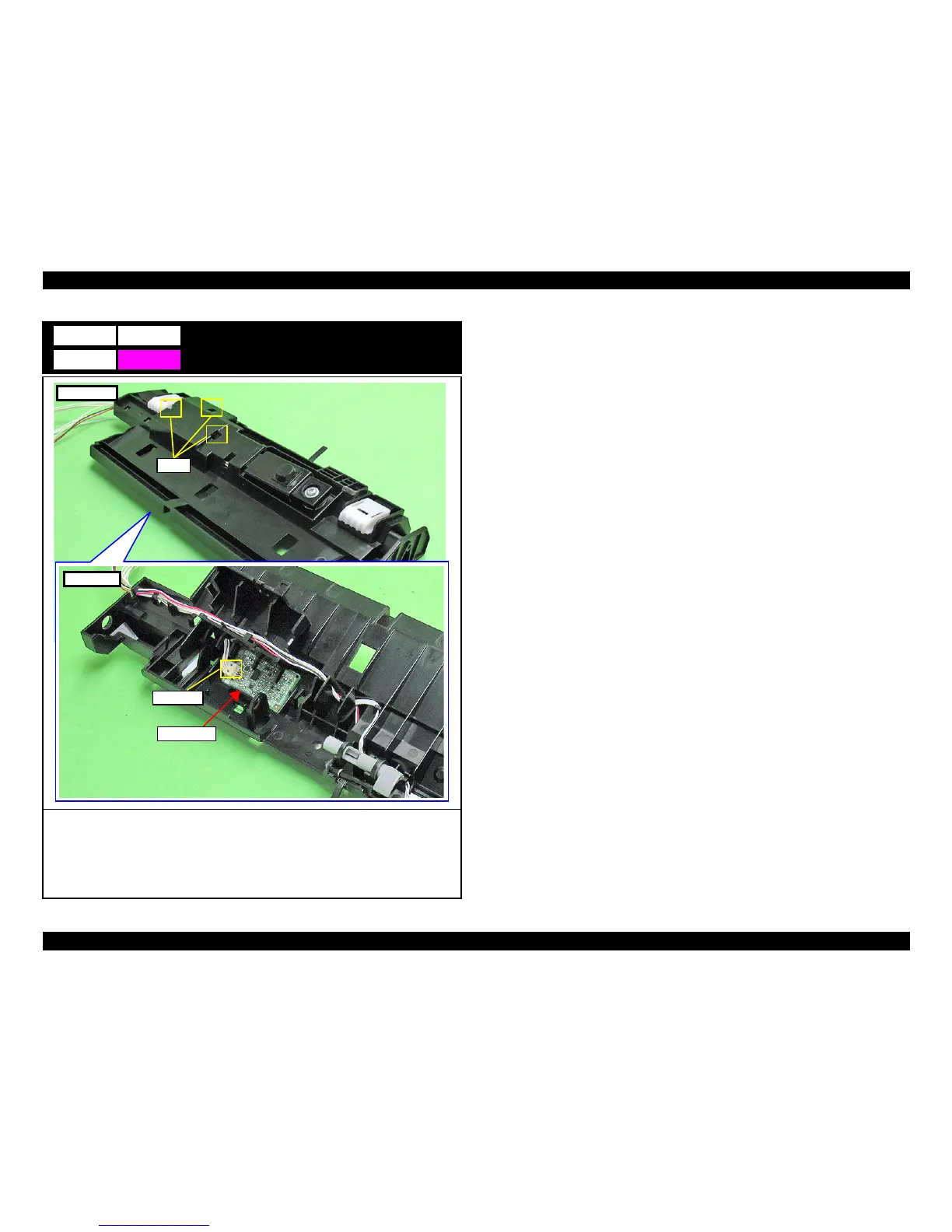

1. Disengage the three hooks and remove the connector cover.
2. Remove the RFID Board from the Paper Feed Unit. (The board is secured to the unit with
double-faced tape.)
3. Disconnect the connector from the RFID Board.
D6
Hooks
Back side
RFID Board
Connector
Front side
