EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 97
Confidential

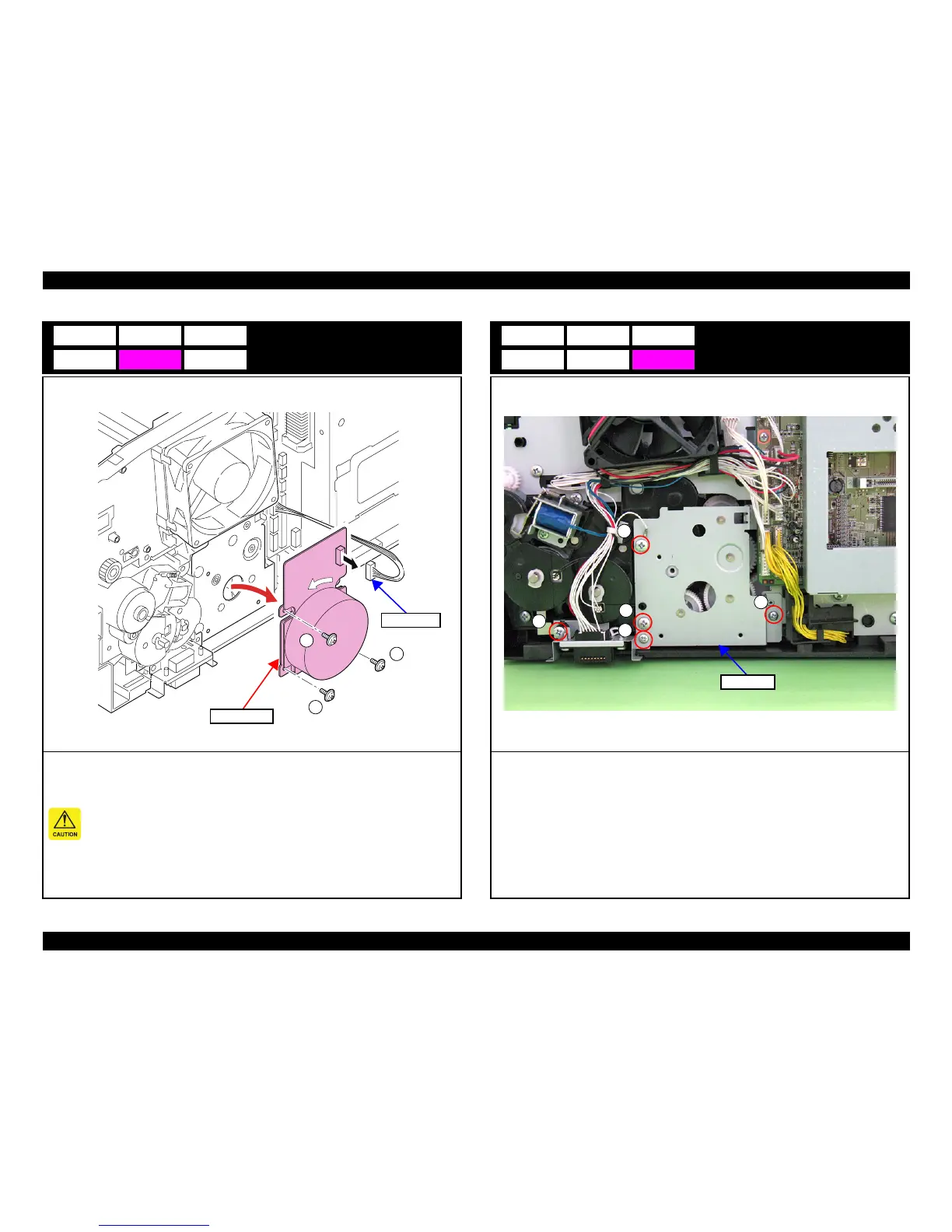

Main Motor
1. Disconnect the connector from the Main Motor.
2. Remove the three screws, and remove the Main Motor.
A) Silver / M3x6 / Cup: Three pieces
Never turn the Main Motor in the reverse direction of the arrow indicated on the Main
Motor Board. Doing so may damage the Photoconductor Unit.
E3
F3
A
A
A
Connector
Main Motor
Gear Unit
1. Remove the five screws, and remove the Gear Unit.
A) Silver / M3x10 / P-Tite: Three pieces
B) Silver / M3x6 / S-Tite: Two pieces
F4
A
A
A
B
B
Gear Unit
