Epson AcuLaser M2000D User Manual

EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 72
Confidential
Toner Cartridge

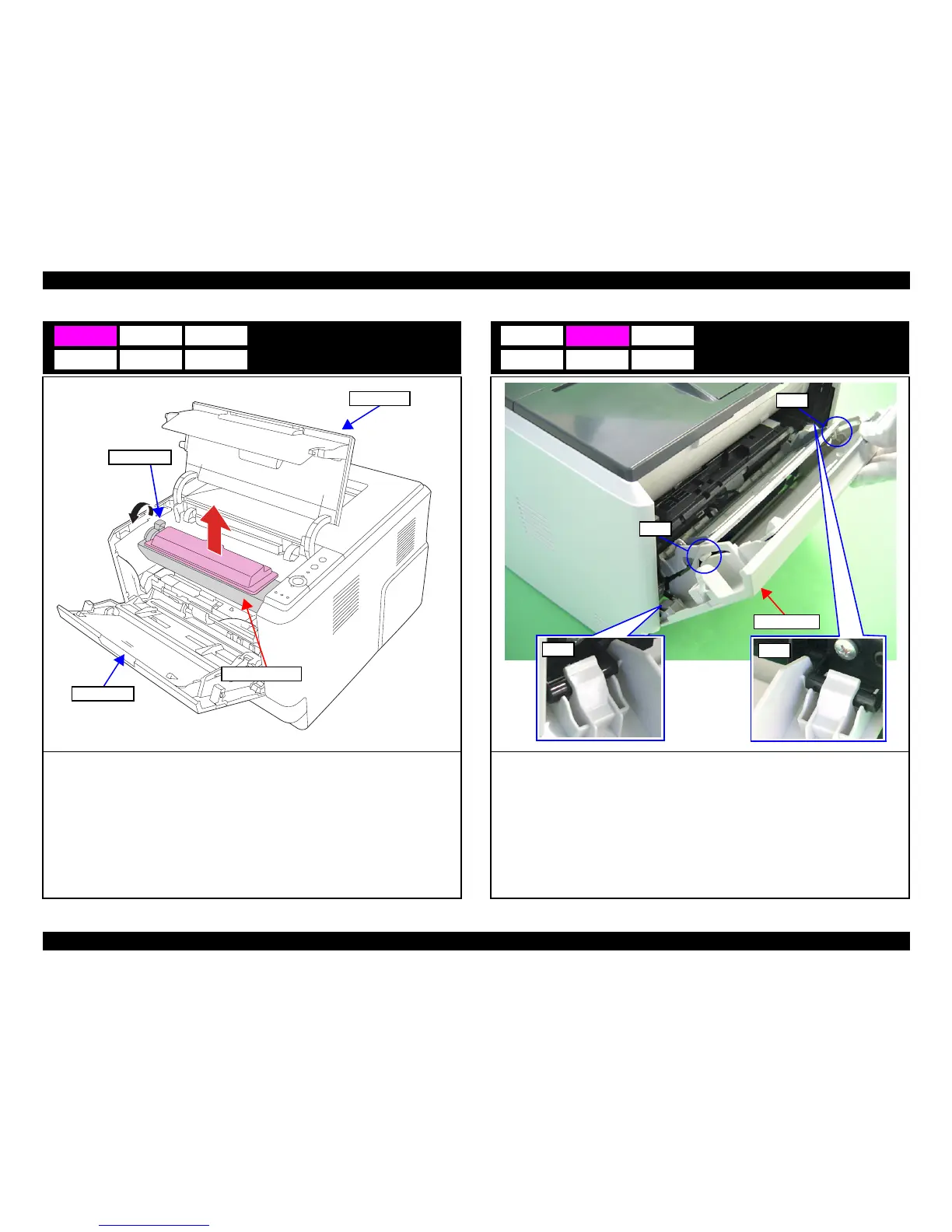

1. Open the Top Cover and the Front Cover.
2. Move the Lock Lever to unlock the Toner Cartridge.
3. Remove the Toner Cartridge.
A1
Toner Cartridge
Top Cover
Front Cover
Lock Lever
Front Cover
1. Slightly open the Front Cover and disengage both sides of the cover from the MP Tray by
bowing the Guide portions of the cover.
2. Pull the Front Cover toward you to disengage its joints on both sides, and remove the cover.
B1
Guide
Joint
Joint
Front Cover
Guide
