EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 130
Confidential

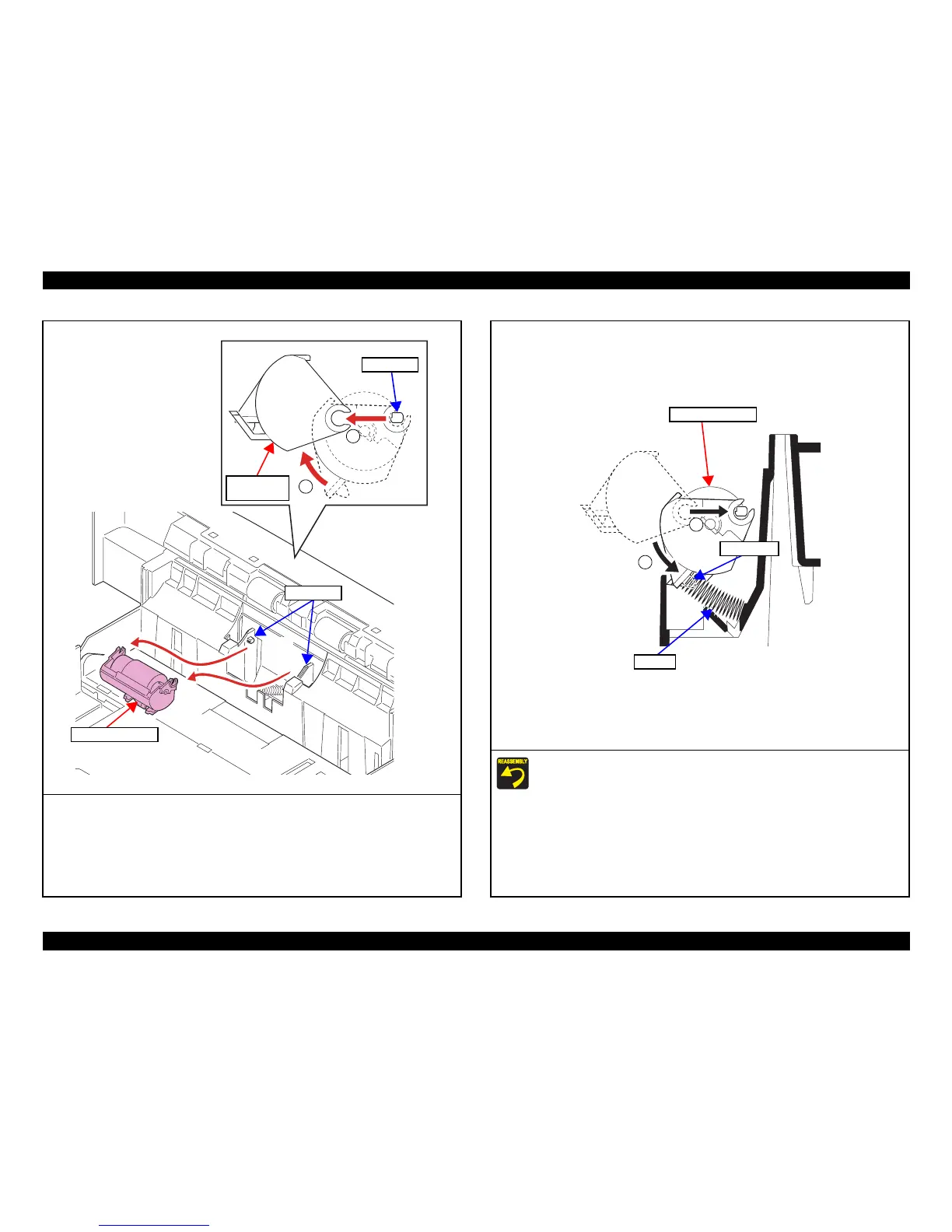

3. Rotate the Separation Roller to remove it from the guide pins.
Separation Roller
Guide Pin
Separation
Roller
Guide Pin
2
1
Install the Separation Roller following the procedure below.
1. Insert the grooves of the Separation Roller over the guide pins of the Cassette.
2. Insert the spring over the projection on the Separation Roller.
1
2
Spring
Projection
Separation Roller
