EPSON AcuLaser M2000D/M2000DN/M2010D/M2010DN Revision B
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 123
Confidential

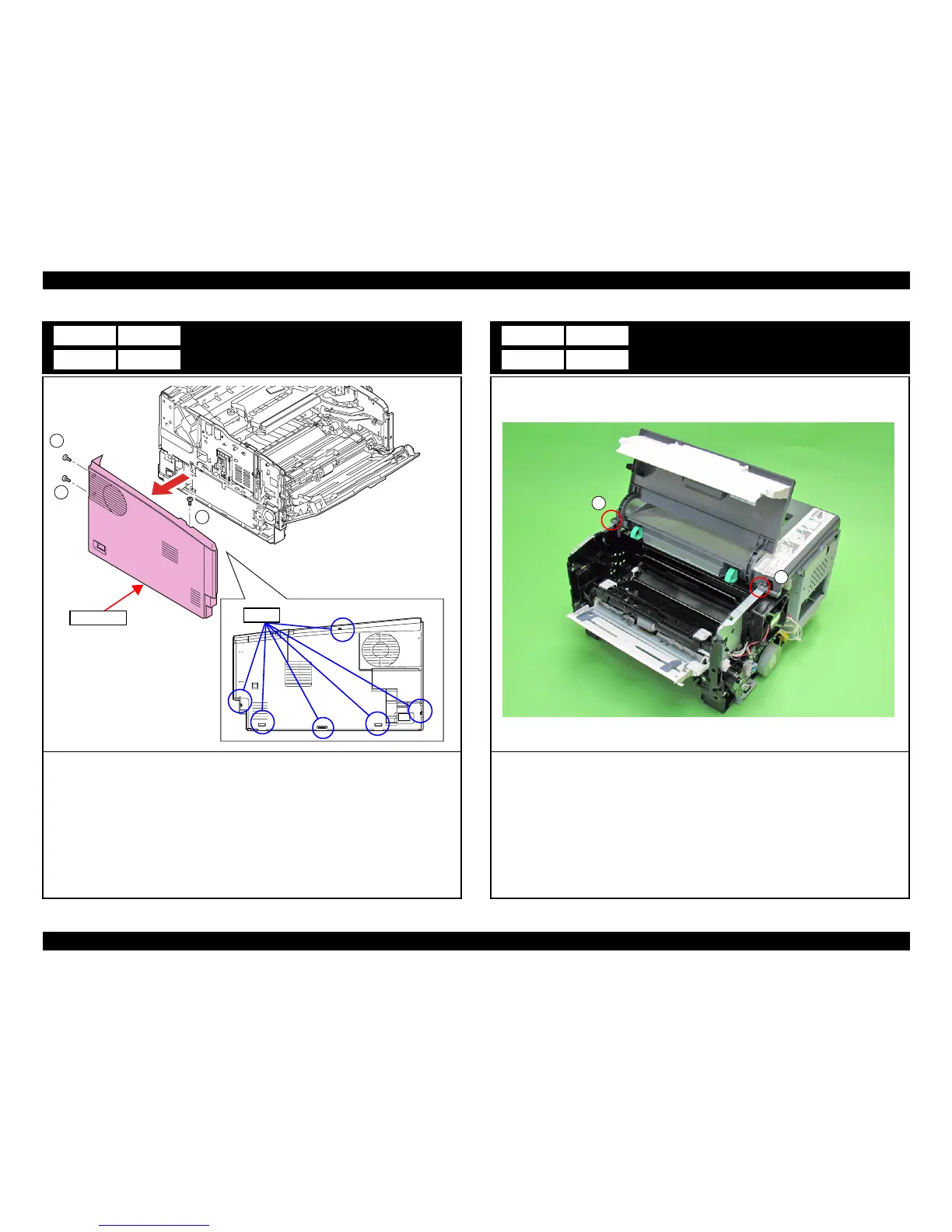

Left Cover
1. Open the Top Cover.
2. Slightly pull out the Paper Cassette.
3. Remove the three screws.
A) Silver / M3x10 / P-Tite: Three pieces
4. Disengage the six hooks of the Left Cover in the order from the rearmost hook to the
frontmost one, and remove the Left Cover.
A4 B4
Left Cover
Hooks
A
A
A
Top Cover
1. Remove the two screws, and remove the Top Cover.
A) Silver / M3x6 / P-Tite: Two pieces
A5 B5
A
A
