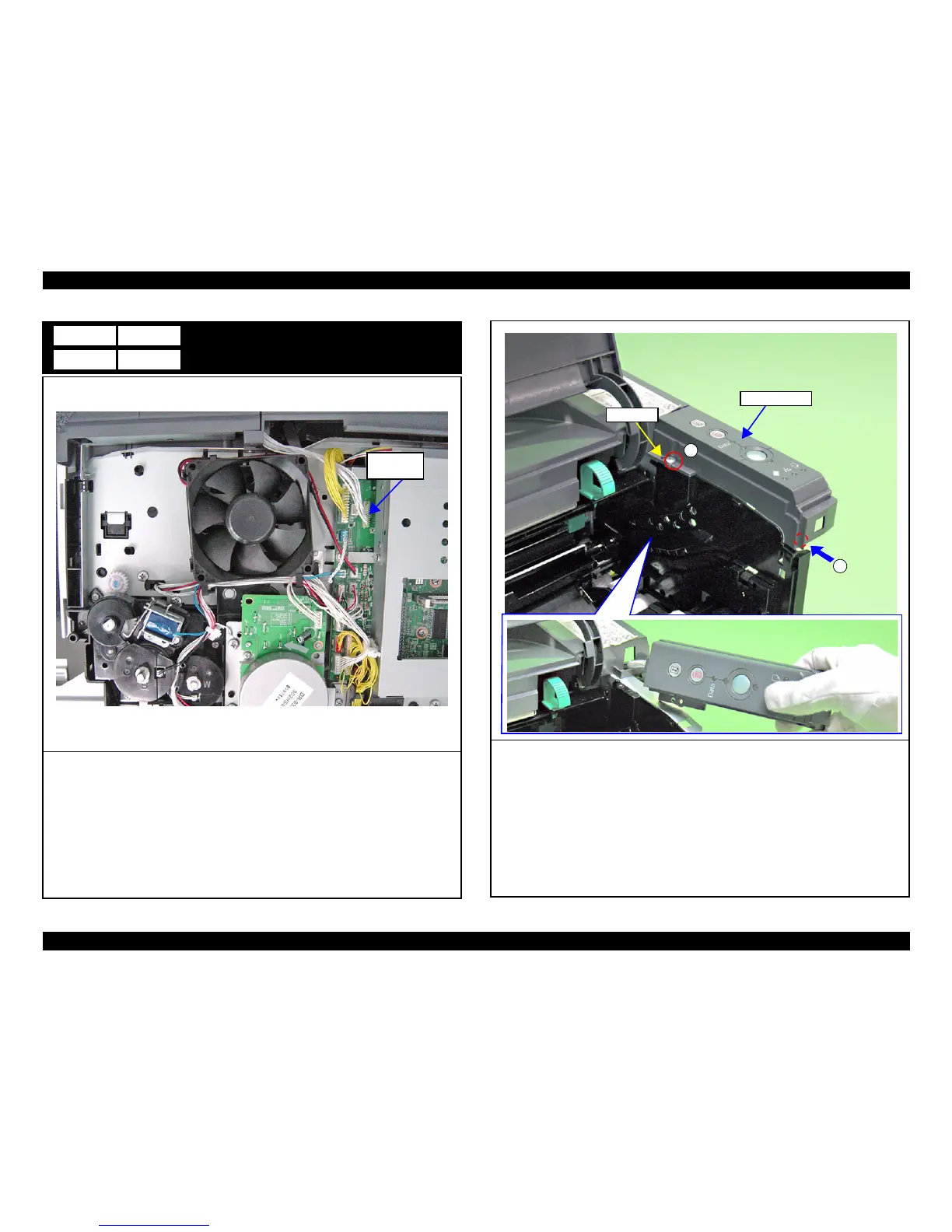

DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 122
Confidential
Control Panel
1. Disconnect the connector from the Main Board Assy.
A3 B3
Connector
(CN405)
2. Open the Top Cover.
3. Remove the two screws.
A) Silver / M3x6 / S-Tite: One piece
B) Silver / M3x10 / P-Tite: One piece
4. Pull out the tab from the guide pin, and remove the Control Panel while pulling out the
cable.
B
A
Control Panel
Guide Pin
