Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 404
Confidential

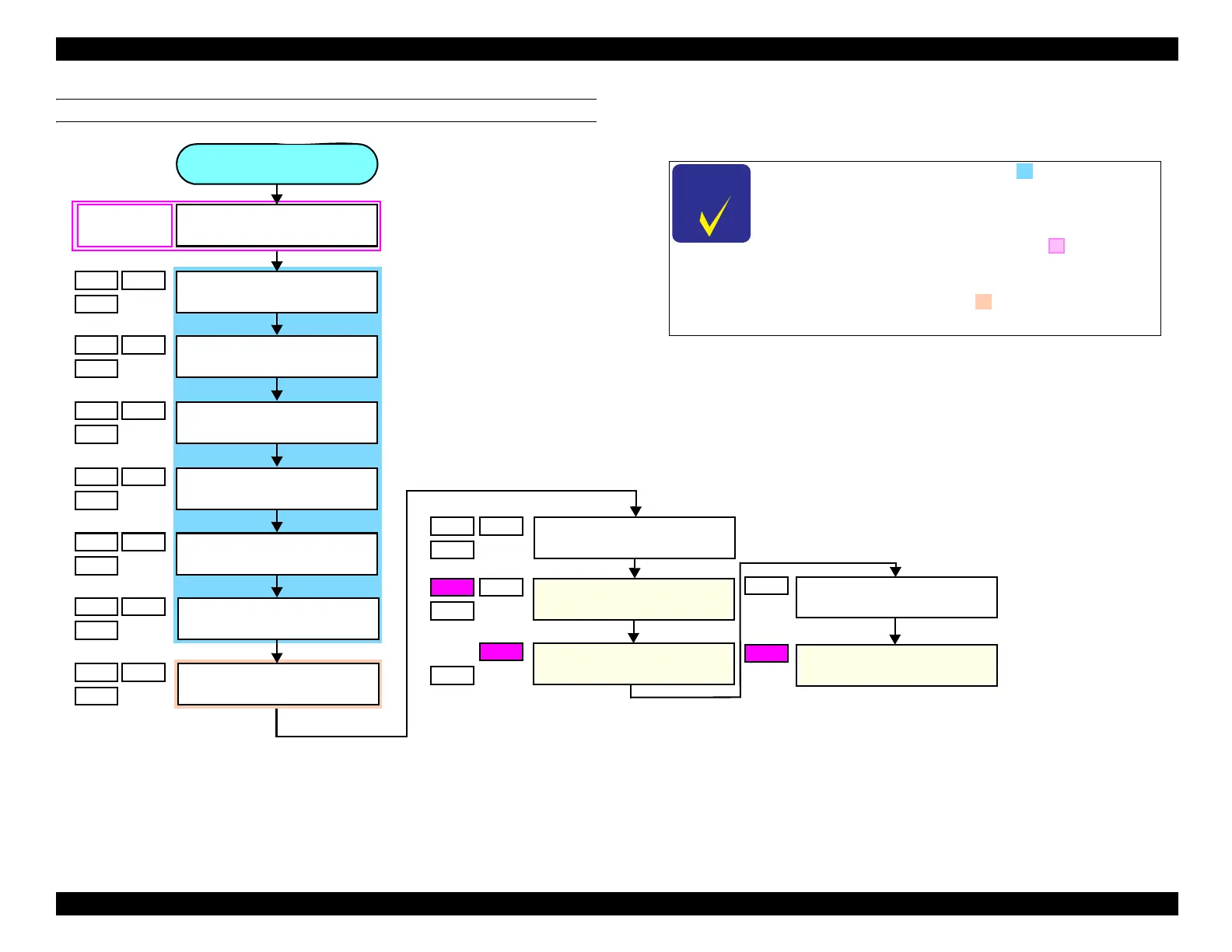

DISASSEMBLY FLOWCHART
ADF/SCN Unit
(→P. 409)
A1 B1
Start
Rear Cover (Back)
(→P. 406)
Start
ASF Front Cover
(→P. 407)
Ink Eject Cover
(→P. 407)
Housing Right
(→P. 408)
Housing Left
(→P. 408)
Housing Upper
(→P. 409)
C1
A2 B2
C2
A3 B3
C3
A4 B4
C4
A5 B5
C5
A6 B6
C6
Head Upper Cover
(→P. 410)
C8
A8 B8
C9
B9
Head Screw Assy
(→P. 411)
Printhead
(→P. 412)
C10
C11
Cable Guide
(→P. 414)
C12
Head FFC Assy
(→P. 415)
C H E C K
P O I N T
 As for the procedure indicated by , refer to 6.2.4.4
Housing (WF-C5200 Series) (2) (p. 254) in the case of
the WF-C5200 Series, and remove the parts from the
Rear Back Cover to the Housing Top.
 Implement the procedure indicated by when
removing the Ink Tube from the RIPS Unit and
Printhead.
 The procedure indicated by is applicable only in the
WF-C5700 Series/ET-8700.
A9
B10
C7
A7 B7
Preparation for
Dissembling
Ink Discharge
(→P. 405)
