Printhead
After ink charging, follow the instructions on the Ink leak check (p.563) to remove the
LEAK TESTER SHEET FRONT/REAR, then perform Leak Check Judgement.
Frame Plate

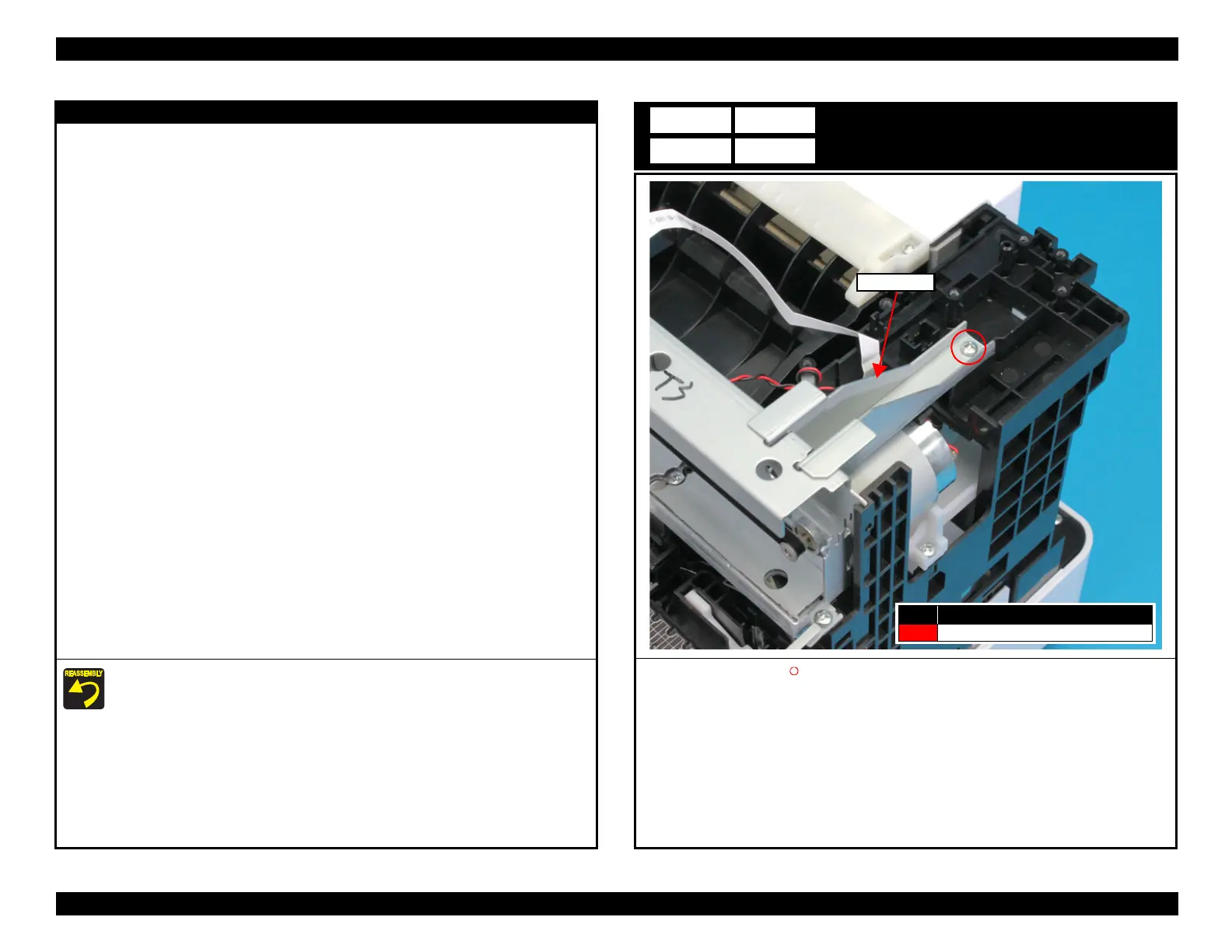

1. Remove the screw (S4: ), and remove the Frame Plate.
B20
C20
Frame Plate
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
