■ Front View
The image that is displayed in this screen varies depending on the device model.
● For ETERNUS DX80 S2/DX90 S2

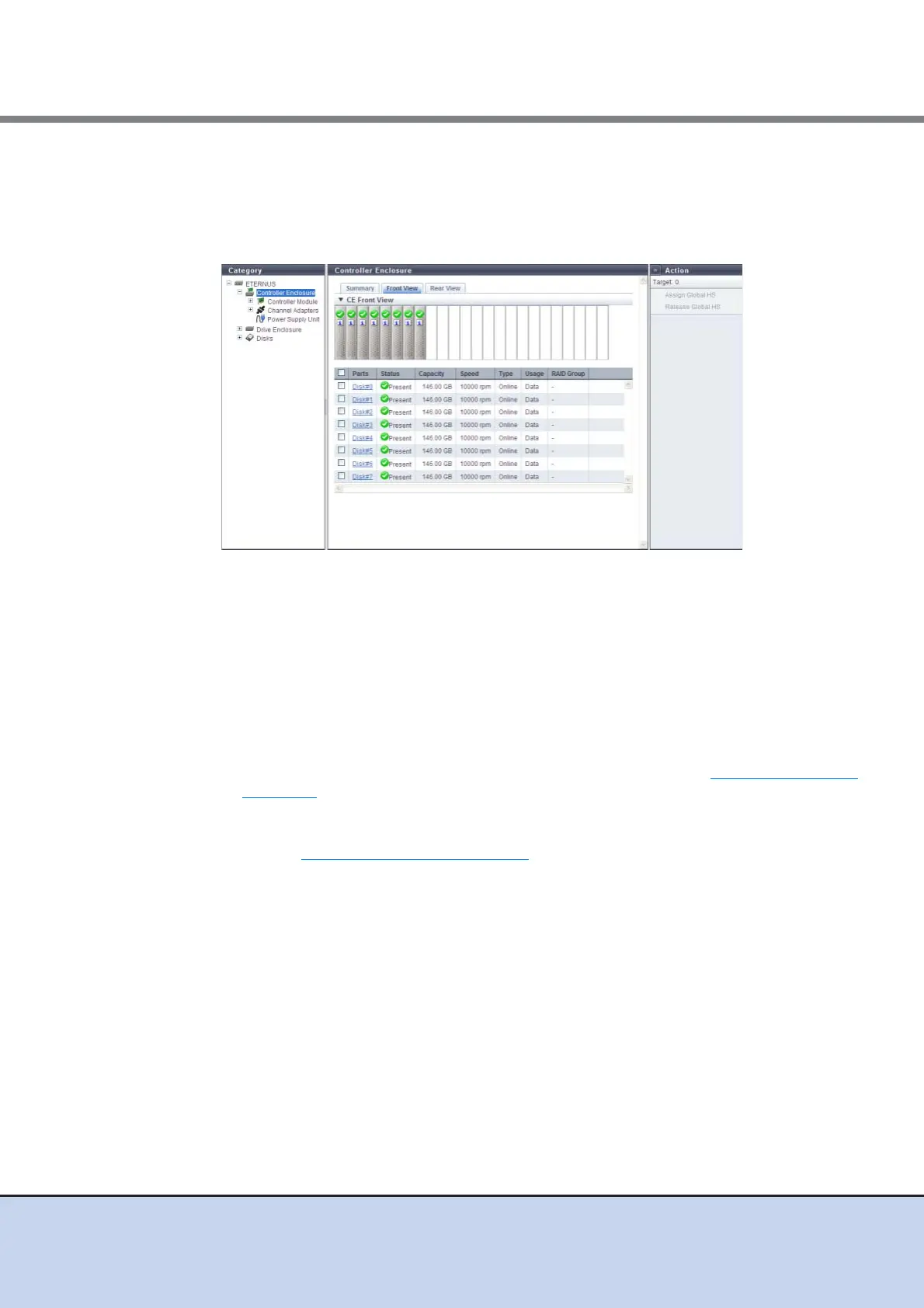

The following items are displayed in the Main area:
- Device image
The front view of the CE that is installed in the ETERNUS DX Disk storage system is
displayed.
• For 2.5-inch models: 24 (24 drives are lined up horizontally)
• For 3.5-inch models: 12 (3 drives are lined up vertically and 4 drives are lined up
horizontally)
• When no drives are installed: Blank
The drive status is displayed with an icon.
By clicking the drive image, the [Disks] screen is displayed. Refer to "10.1.11 Disks Detail"
(page 427) for display items.
- Parts
The drive number is displayed. By clicking the drive image, the [Disks] screen is displayed.
Refer to "10.1.11 Disks Detail" (page 427)
for display items.
- Status
The drive status is displayed.
- Capacity
The capacity of the drive is displayed.
- Speed
The drive speed is displayed. For SSD, "0 rpm" is displayed.
• 15000 rpm
• 10000 rpm
• 7200 rpm
• 0 rpm
