- Component
The BTU number or the BCU number is displayed.
By clicking the BTU number, the [BTU] screen is displayed.
By clicking the BCU number, the [BCU] screen is displayed.
- Status
The BTU status or the BCU status is displayed. Refer to "B.5 Component Status" (page
615) for details.
- Status Code
The status code for BTU or BCU is displayed.
- Error Code
The error code for BTU BCU is displayed.
■ Rear View
The image that is displayed in this screen varies depending on the device model.
● For ETERNUS DX80 S2/DX90 S2
The following items are displayed in the Main area:

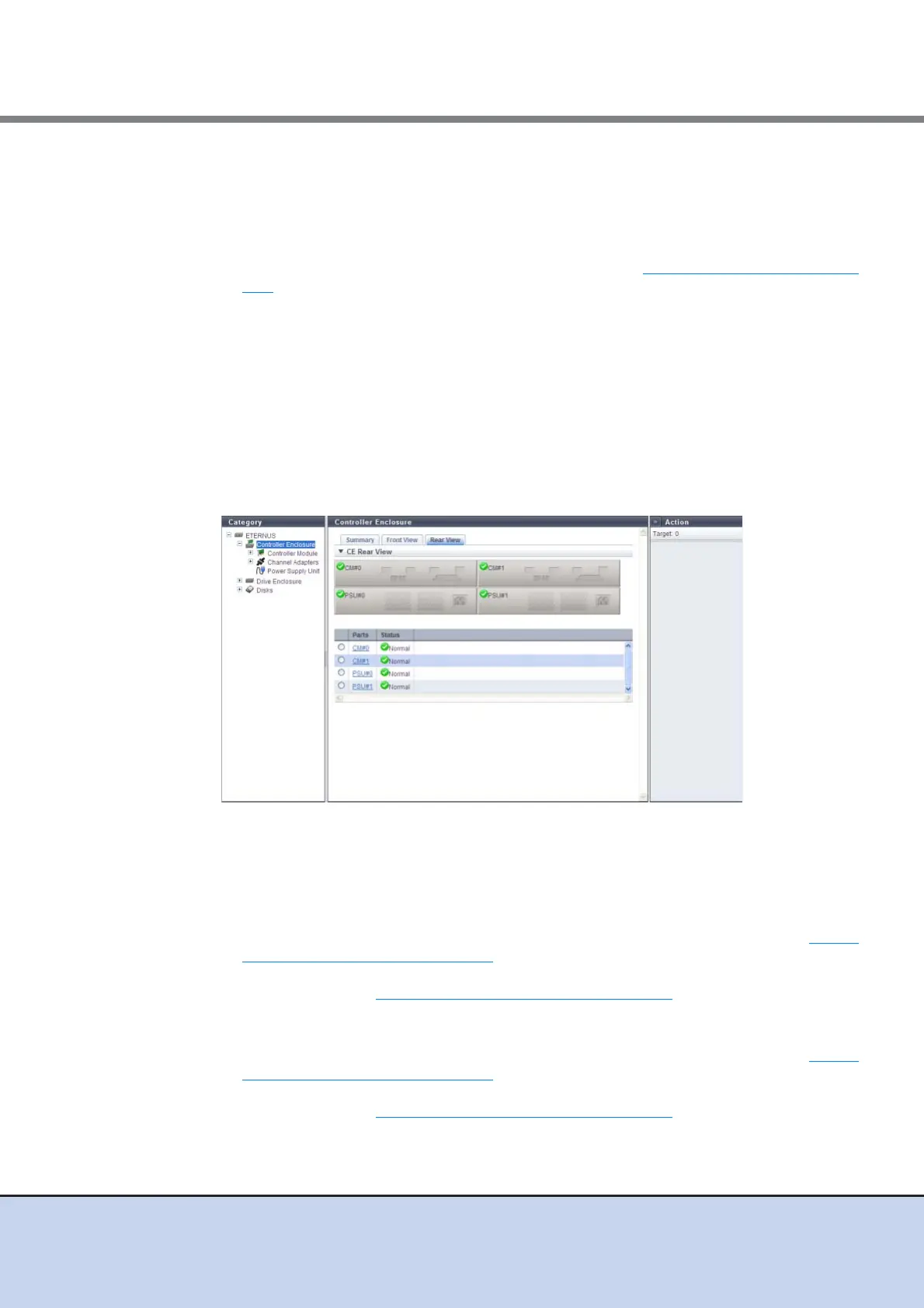

- Device image
The rear view of the CE that is installed in the ETERNUS DX Disk storage system is
displayed.
The CM status and the Power Supply Unit (PSU) status are displayed with icons.
By clicking the CM number, the [Controller Module] screen is displayed. Refer to "10.1.5
Controller Module Detail" (page 414) for display items.
By clicking the PSU number, the [Controller Enclosure Power Supply Unit] screen is
displayed. Refer to "10.1.7 PSU/CPSU (CE) Detail" (page 419)
for display items.
- Parts
The CM number or the PSU number is displayed.
By clicking the CM number, the [Controller Module] screen is displayed. Refer to "10.1.5
Controller Module Detail" (page 414) for display items.
By clicking the PSU number, the [Controller Enclosure Power Supply Unit] screen is
displayed. Refer to "10.1.7 PSU/CPSU (CE) Detail" (page 419)
for display items.
