166 Upgrade and Maintenance Manual CX2550 M1
System board and components

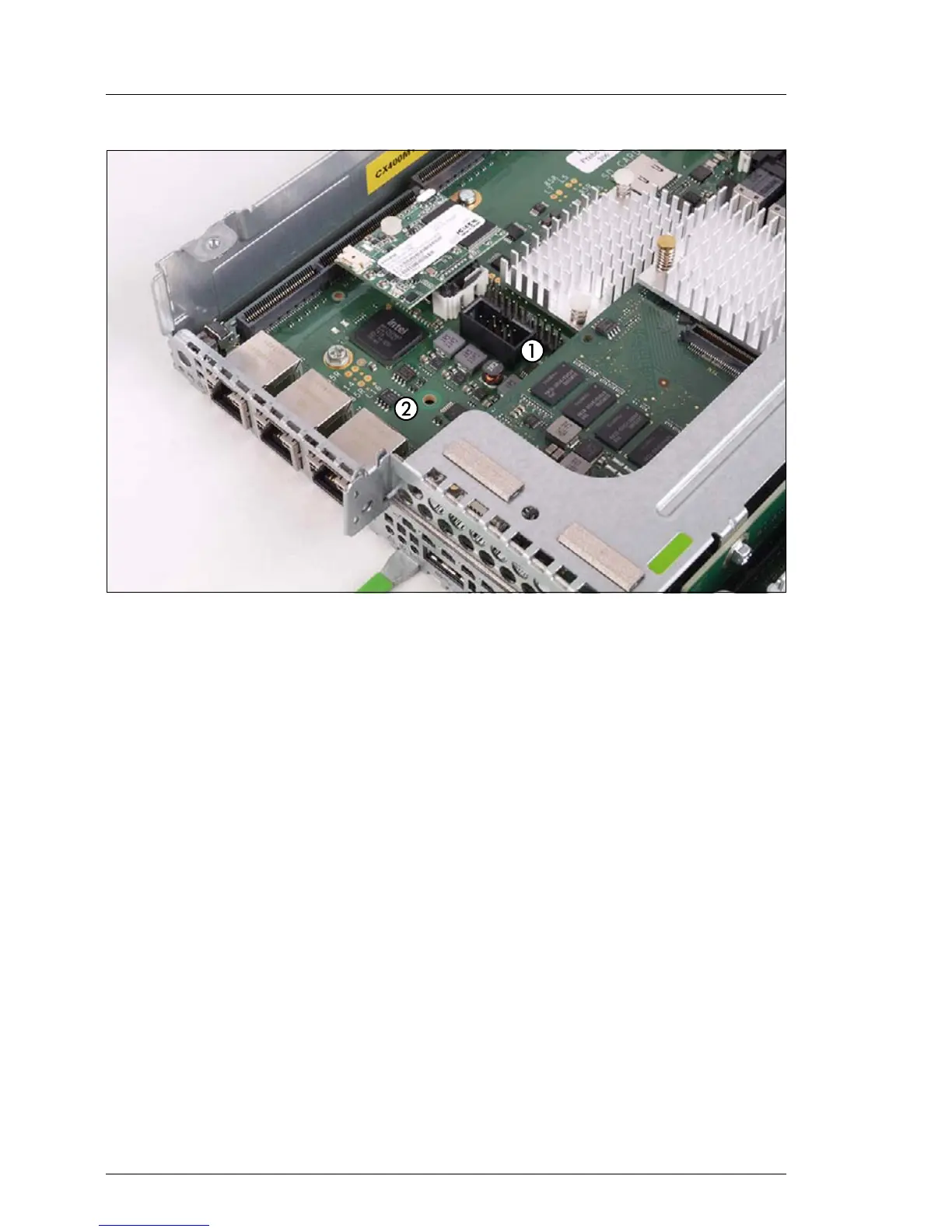

Figure 63: UFM mounting location
UFM mounting location on the system board:
1 UFM connector
2 UFM spacer
