Fujitsu PRIMERGY CX2550 M1 Upgrade And Maintenance Manual

CX2550 M1 Upgrade and Maintenance Manual 167
System board and components

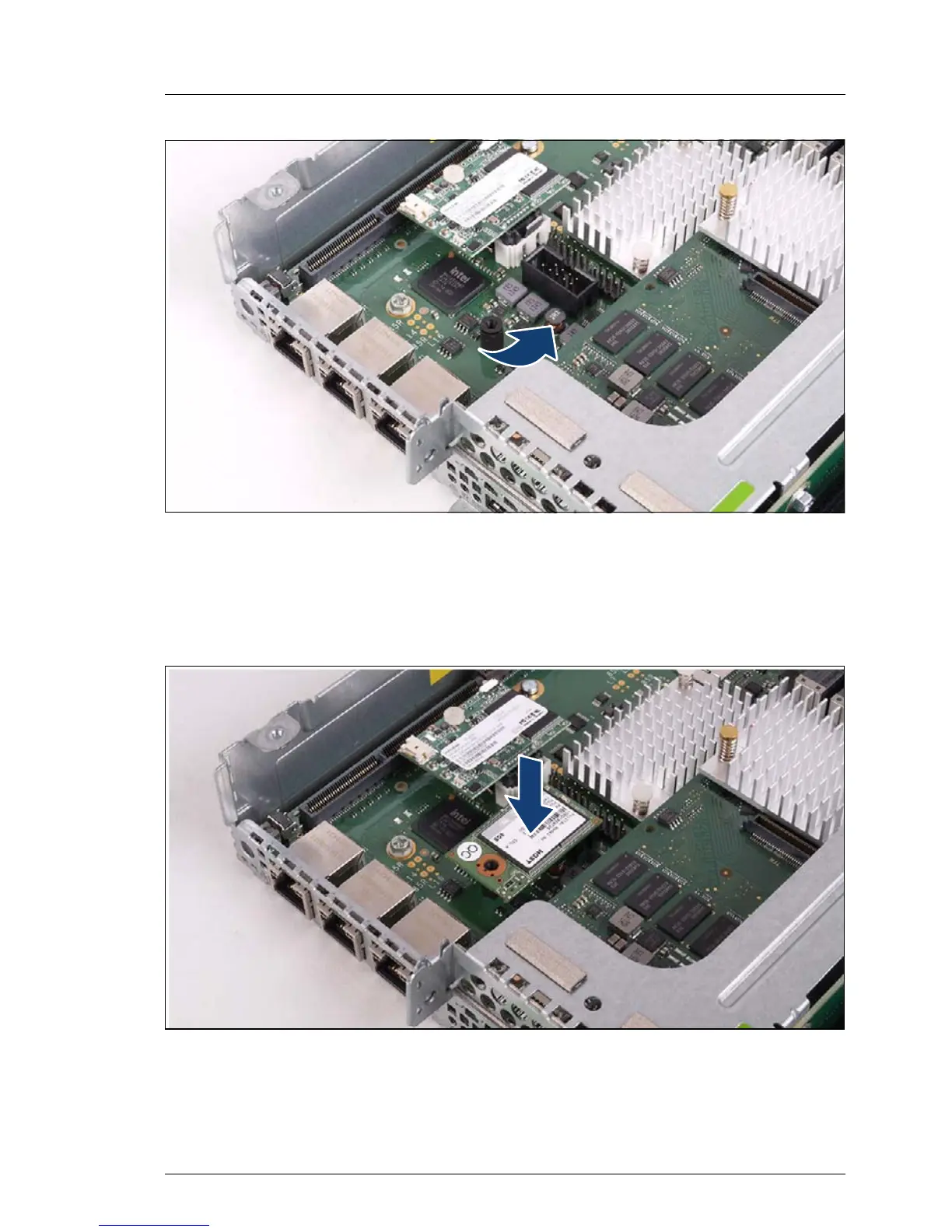

Figure 64: Installing the UFM spacer
Ê Insert the plastic spacer in the recess next to the multi-pin connector for the
TPM (see arrow).
The plastic spacer must audibly click into place.
Figure 65: Installing the UFM board (A)
Ê Connect the UFM board to the system board.

Fujitsu PRIMERGY CX2550 M1 Specifications

General

Brand	Fujitsu
Model	PRIMERGY CX2550 M1
Category	Server
Language	English
