194 Upgrade and Maintenance Manual CX2550 M1
Liquid cooling

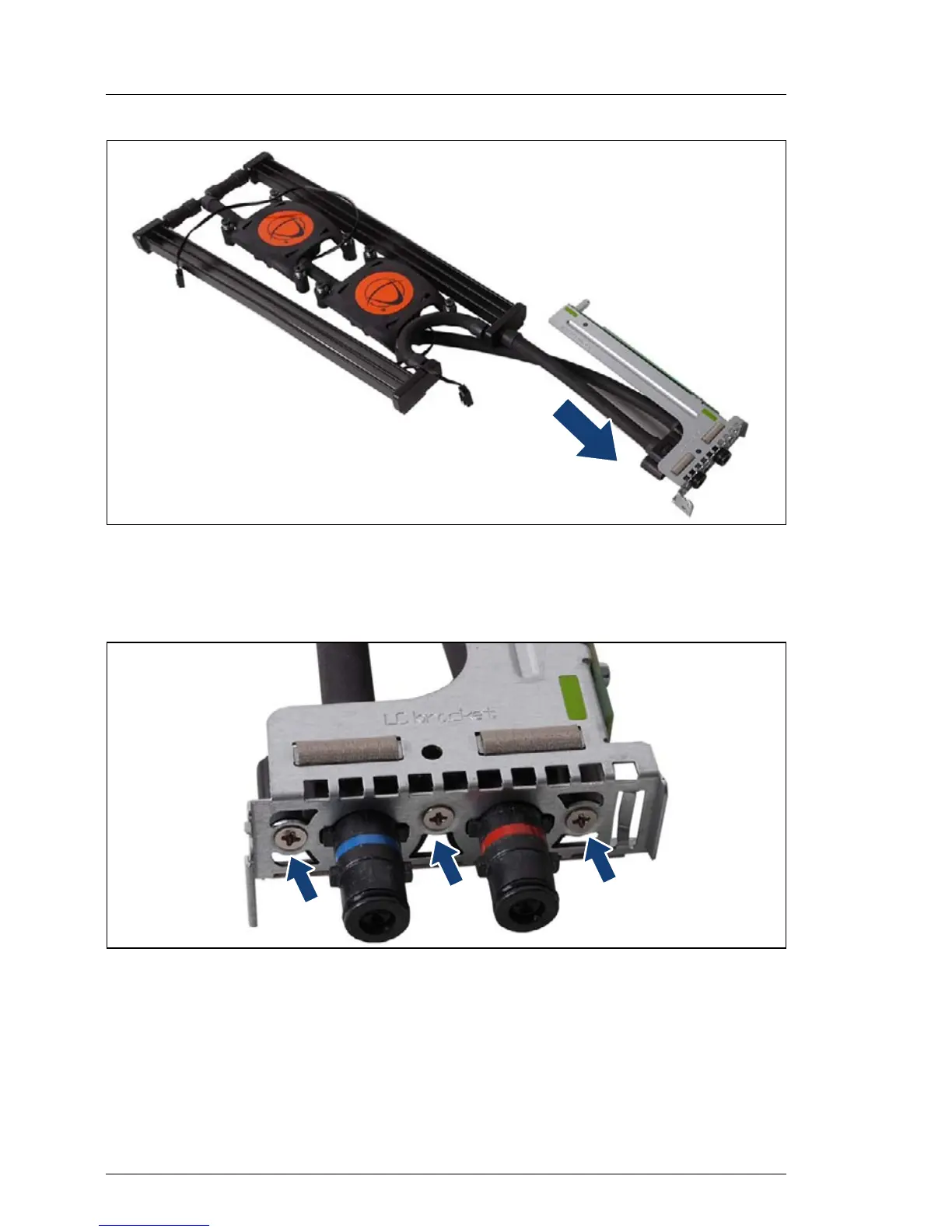

Figure 88: Installing the flexible tubes (A)
Ê Push the flexible tubes through the holes of the liquid cooling kit riser module
(see arrow).
Figure 89: Installing the flexible tubes (B)
Ê Fasten the screws of the bracket.
