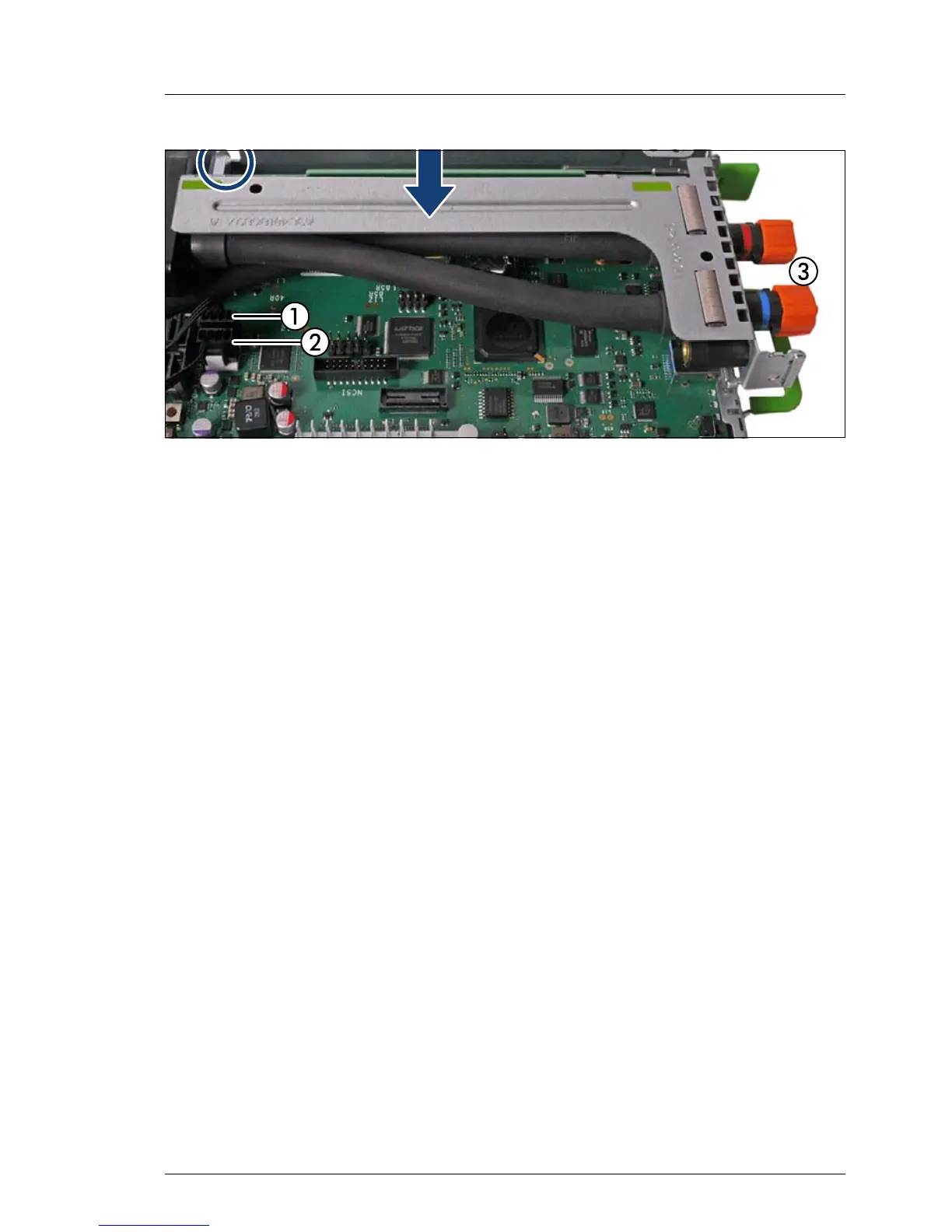

Figure 94: Installing the riser module (C)
Ê Press down the riser module (see arrow).
I – Make sure that the bolt snaps into the chassis sparing (see circle)
and the c
onnector of the riser card fits within the slot.
– If SATA cables are already installed in server node, make sure
that all connectors are connected properly.
Ê Mount the protective caps (3) for the tubes.
Ê Connect the power cable of pump for CPU 2 to the connector (1) on the
system board.
Ê Connect the power cable of pump for CPU 1 to the connector (2) on the
system board.
