6.2.2 Accessing the CD-RW/DVD-RW Drive Unit
● Power off the server.
This step includes turning the key switch to the Service position, confirming that
the POWER LED is off, and disconnecting power cables. See Section 4.4.1,
“Powering the Server Off Using Software” on page 4-12.
Caution – There is an electrical hazard if the power cords are not disconnected. All
power cords must be disconnected to completely remove power from the server.
6.2.3 Removing the CD-RW/DVD-RW Drive Unit
Caution – Use proper ESD grounding techniques when handling components. See
Section 1.1, “Safety Precautions” on page 1-1.
1. Put a No. 1 screwdriver into the CD-RW/DVD-RW drive unit release hole to
release the catch that holds the CD-RW/DVD-RW drive unit in place
(
FIGURE 6-7).
2. Remove the drive from the server and place it on the ESD mat.

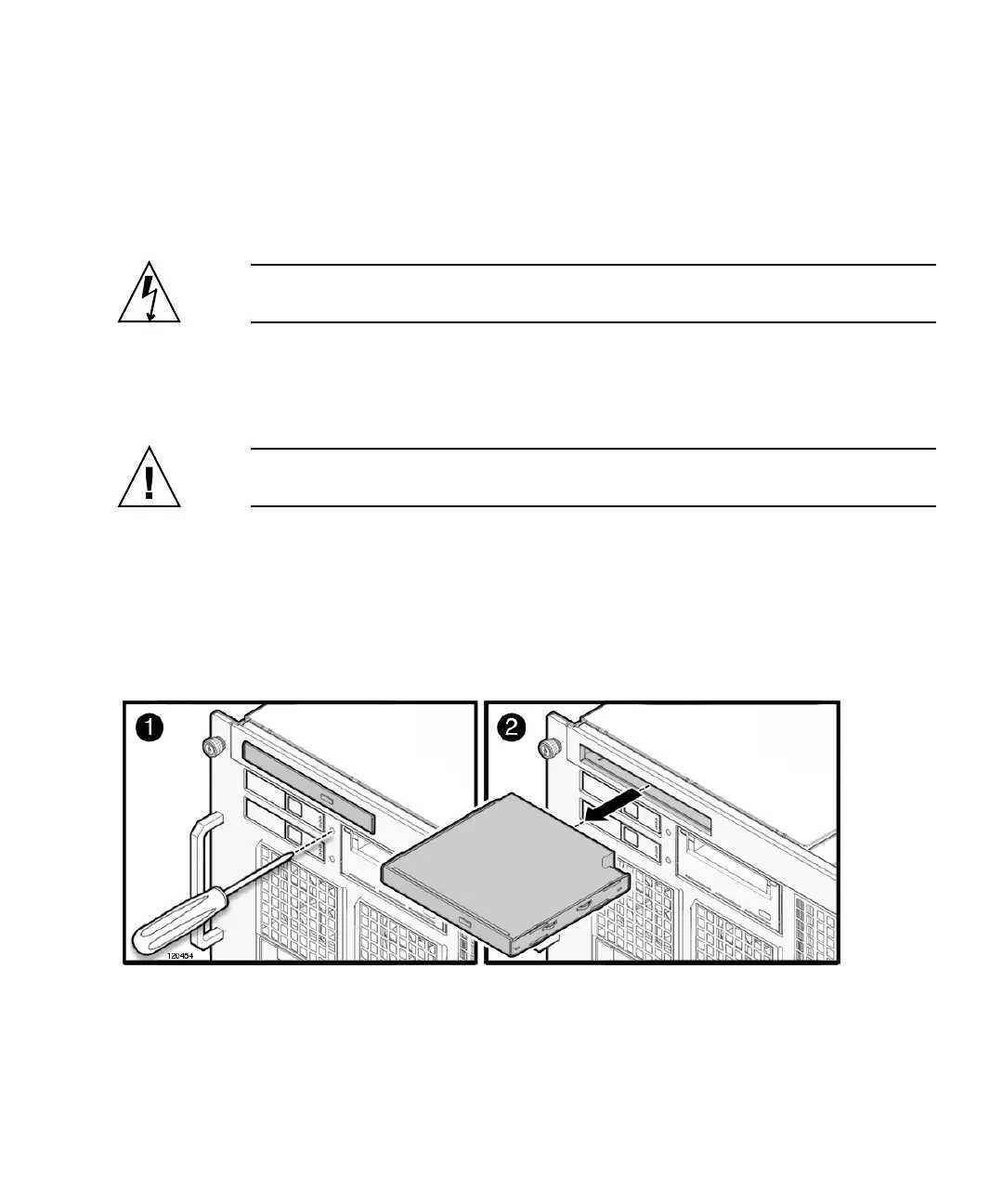

FIGURE 6-7 Removing the CD-RW/DVD-RW Drive Unit
